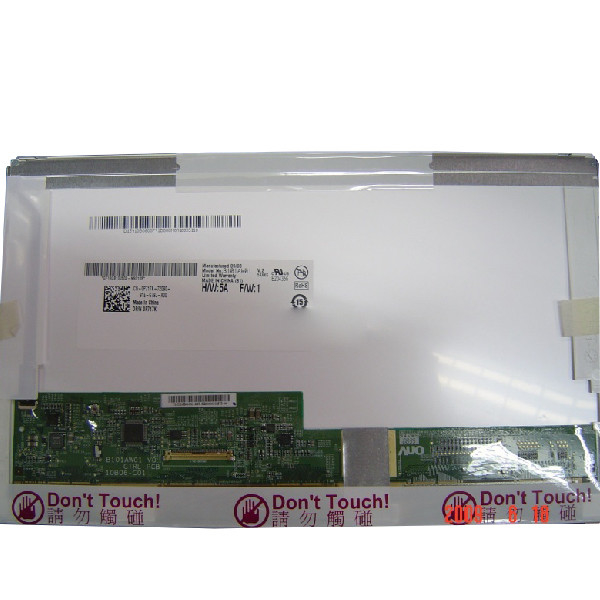

B101AW01 V0 HW5A AUO 10.1 inch with Resolution1024*576 Lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101AW01 V0 HW5A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101AW01 V0 HW5A | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×576 WSVGA 116PPI | Active Area: | 222.72(H)×125.28(V) Mm |
| Outline Size: | 235(H)×143(V)×5.2(D) Mm | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Screen Weight: | 262K , 45% NTSC | Designed For: | Netbook PC |
Product Description
B101AW01 V0 HW5A AUO 10.1 inch with Resolution1024*576 Lcd screen
B101AW01 V0 HW5A Product details :
| AUO LCD SCREEN B101AW01 V0 HW5A | |
| Panel Brand | AUO |
| Panel Model | B101AW01 V0 HW5A |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×576 WSVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 222.72(H)×125.28(V) mm |
| Bezel Opening | 224.72(H)×127.28(V) mm |
| Outline Size | 235(H)×143(V)×5.2(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Netbook PC |
| Signal Interface | 40 pins LVDS (1 ch, 6-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B101AW01 V0 HW5A AUO 10.1 inch with Resolution1024*576 Lcd screen | |
B101AW01 V0 HW5A Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B101AW01 V0 HW5A Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
B101AW01 V0 HW5A Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
B101AW01 V0 HW5A Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
B101AW01 V0 HW5A FAQ:
Q: How do you ship my goods B101AW01 V0 HW5A ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen B101AW01 V0 HW5A at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of B101AW01 V0 HW5A ?
A: 90 days warranty .
B101AW01 V0 HW5A Shippment & Packing
