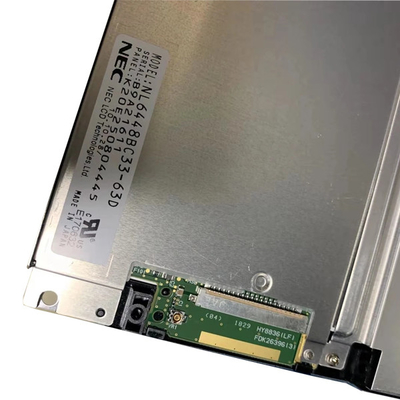

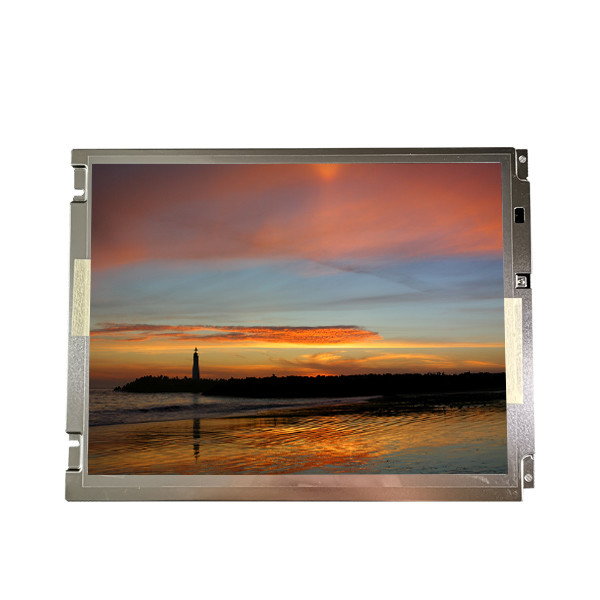

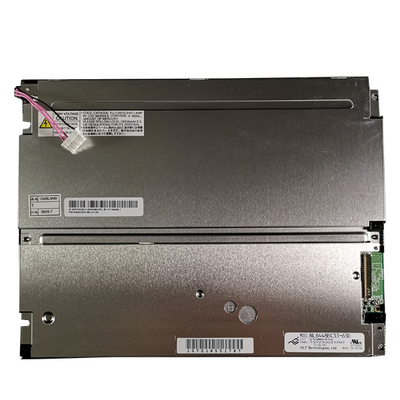

NEC 20 pins LVDS 10.4 Inch 640*480 CCFL NL6448BC33-63D TFT LCD Screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-63D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-63D | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 243(H)×185.1(V) ×11(D) Mm |
| View Direction: | 6 O'clock | Response Time: | 6/19 (Typ.)(Tr/Td) |
| Weight: | 475/500g (Typ./Max.) | Designed For: | Industrial |
Product Description
NEC 20 pins LVDS 10.4 Inch 640*480 CCFL NL6448BC33-63D TFT LCD Screen display
NL6448BC33-63D Product details :
| NEC LCD Screen NL6448BC33-63D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-63D |
| Screen Size | 10.4 inches |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 640(RGB)×480 (VGA) 76PPI |
| Pixel layout | RGB vertical bar |
| Display size | 211.2 × 158.4 (H×V) mm |
| physical dimension | 243 × 185.1 × 11 (H×V×D) mm |
| Open area | 215.4(H)×161.8(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 450 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 6/19 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 40% NTSC |
| type of light source | CCFL [2 pcs], 50K hours, no driver |
| weight | 475/500g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NEC 20 pins LVDS 10.4 Inch 640*480 CCFL NL6448BC33-63D TFT LCD Screen display | |
NL6448BC33-63D Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
NL6448BC33-63D Shippment & Packing
NL6448BC33-63D Shippment:
The panel will be 100% check and test before shippment.
We will handle your order within 3-5 business day after got your order(Weekends And Holidays Excluded).
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
We also can offer Expedited International Shipping(FedEx,UPS or DHL) with extra fee if you need the item urgently.
Buyer is responsible for customs duty fee.
NL6448BC33-63D Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
NL6448BC33-63D FAQ:
Q: If I place order now,when will you ship the goods of NL6448BC33-63D ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of NL6448BC33-63D ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of NL6448BC33-63D ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL6448BC33-63D to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
