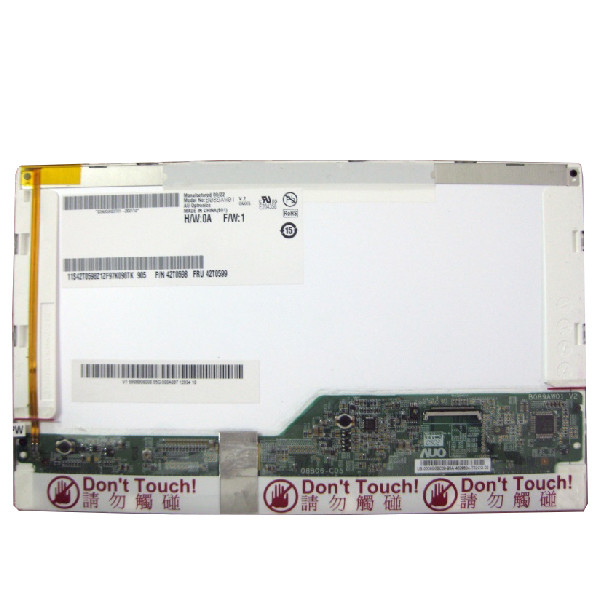

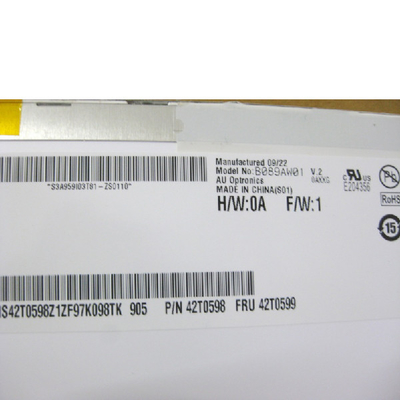

8.9 inch 1024*600 133 PPI B089AW01 V2 LCD display TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B089AW01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B089AW01 V2 | Diagonal Size: | 8.9" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 [WSVGA] 133PPI | Active Area: | 195.072(H)×113.4(V) Mm |
| Outline Size: | 213.4(H)×129.6(V) ×5.45(T) Mm | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 300:1 (Typ.) (TM) |
| Screen Weight: | 262K, 51% NTSC | Designed For: | Netbook PC |
Product Description
8.9 inch 1024*600 133 PPI B089AW01 V2 LCD display TFT Module
B089AW01 V2 Product details :
| Brand | AUO |
| Model Name | B089AW01 V2 |
| Screen size | 8.9 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1024(RGB)×600 [WSVGA] 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 195.072(H)×113.4(V) mm |
| Outline Size | 213.4(H)×129.6(V) ×5.45(T) mm |
| Bezel Opening | 198.27(H)×116.6(V) mm |
| Surface | Antiglare |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Display Mode | TN, normally white display, transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| Responding | 8 (Typ.)(Tr+Td) ms |
| Number of | 262K, 51% NTSC |
| Lamp Type | 3S8P WLED, 10K hours, with LED driver |
| Screen weight | 262K, 51% NTSC |
| Apply to | Netbook PC |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal system | LVDS (1 ch, 6-bit), connector, 40 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| 8.9 inch 1024*600 133 PPI B089AW01 V2 LCD display TFT Module | |
B089AW01 V2 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B089AW01 V2 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
B089AW01 V2 About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
B089AW01 V2 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
B089AW01 V2 FAQ:
Q: Can you tested the B089AW01 V2 before shipping ?
A: Of course , our lcd panel B089AW01 V2 was Strictly tested before shipping.
Q: How to order B089AW01 V2 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel B089AW01 V2 received can't work ?
A: B089AW01 V2 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
B089AW01 V2 Shippment & Packing
