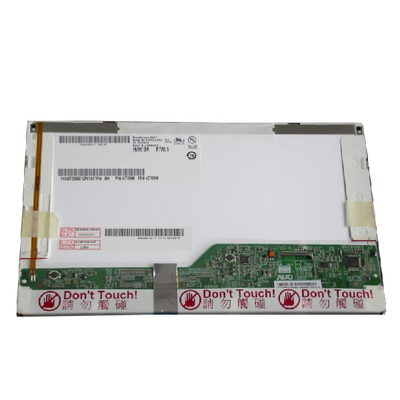

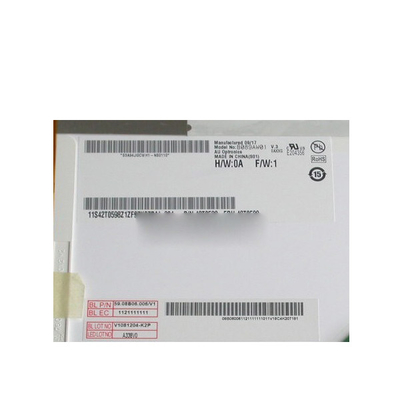

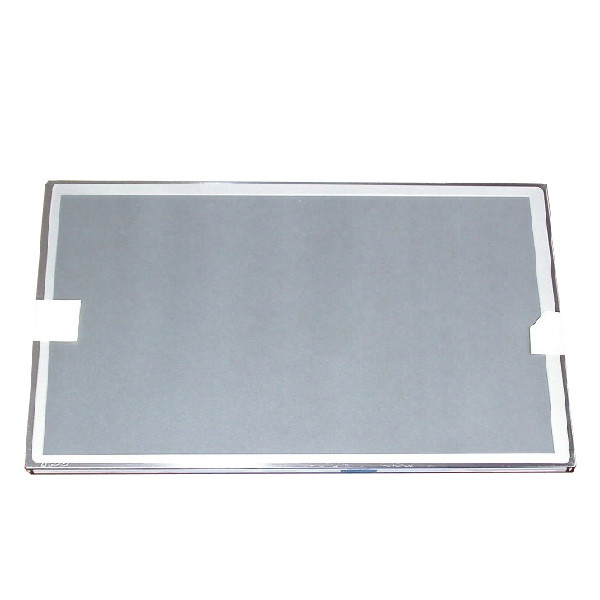

B089AW01 V3 1024*600 8.9 Netbook PC LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B089AW01 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B089AW01 V3 | Diagonal Size: | 8.9" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 [WSVGA] 133PPI | Active Area: | 195.072(H)×113.4(V) Mm |
| Outline Size: | 213.4(H)×129.6(V) ×5.45(T) Mm | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 300:1 (Typ.) (TM) |
| Screen Weight: | 262K, 51% NTSC | Designed For: | Netbook PC |
Product Description
B089AW01 V3 1024*600 8.9 Netbook PC LCD Screen Display
B089AW01 V3 Product details :
| Brand | AUO |
| Model Name | B089AW01 V3 |
| Screen size | 8.9 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1024(RGB)×600 [WSVGA] 133PPI |
| Pixel Format | RGB triangle |
| Display size | 195.072(H)×113.4(V) mm |
| Outline Dim. | 213.4(H)×129.6(V) ×5.45(T) mm |
| Bezel Opening | 198.27(H)×116.6(V) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Operating Mode | TN, Normally White, Transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| Responding | 6/2 (Typ.)(Tr/Td) ms |
| Number of | 262K, 51% NTSC |
| Backlight type | WLED [3S8P], 10K hours, with LED driver |
| Screen weight | 262K, 51% NTSC |
| Apply to | Netbook PC |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal system | 40 pins LVDS (1 ch, 6-bit), connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| B089AW01 V3 1024*600 8.9 Netbook PC LCD Screen Display | |
B089AW01 V3 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B089AW01 V3 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
B089AW01 V3 About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
B089AW01 V3 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
B089AW01 V3 FAQ:
Q: Can you test the lcd panel B089AW01 V3 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order B089AW01 V3 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order B089AW01 V3 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd B089AW01 V3 ?
A: 90 days .
B089AW01 V3 Shippment & Packing
