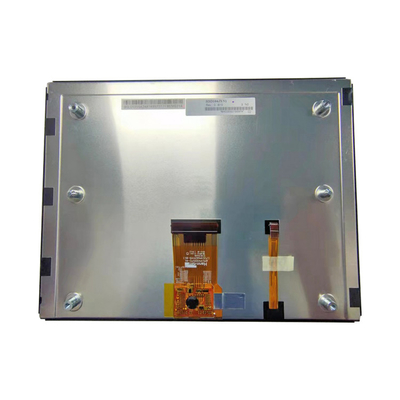

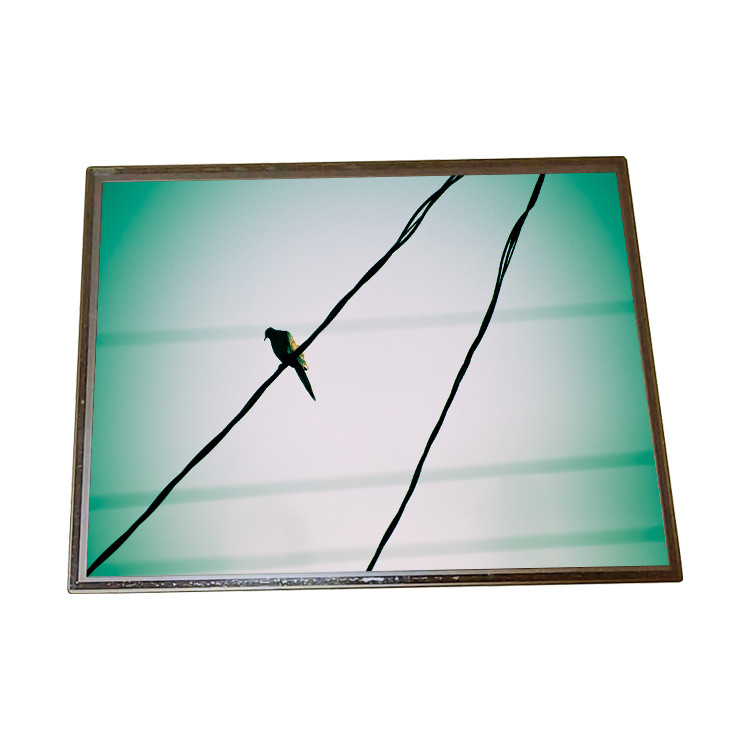

HSD104JXN1-B10 10.4 inch 1024(RGB)×768 lcd Screen panel For Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | HSD104JXN1-B10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD104JXN1-B10 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 123PPI | Active Area: | 211.2(W)×158.48(H) Mm |
| Bezel Opening: | 213(W)×160.28(H) Mm | Outline Size: | 226(H)×174.5(V) Mm |
| Brightness: | 600 Cd/m² (Typ.) | Contrast Ratio: | 900:1 (Typ.) (TM) |
| Weight: | 386g (Typ.) | Designed For: | Automotive Display |
Product Description
HSD104JXN1-B10 10.4 inch 1024(RGB)×768 lcd Screen panel For Automotive Display
HSD104JXN1-B10 Product details :
| HannStar LCD Screen HSD104JXN1-B10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD104JXN1-B10 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Outline Dim. | 226(H)×174.5(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 262K/16.2M 72% NTSC |
| Light Source | WLED [8S4P] , 30K hours , W/O Driver |
| Weight | 386g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/12.1/25/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
| HSD104JXN1-B10 10.4 inch 1024(RGB)×768 lcd Screen panel For Automotive Display | |
HSD104JXN1-B10 Note:
Hello , Dear customers,
Because there are too many products in our store, we can't upload real pictures to each product...But when shipping , we will delivery the right product to you ; If you want to see the product picture before order , you can contact us .
Affected by the market, the prices of some products often risen, we can not update the prices of products in time. Hope you can understand .
HSD104JXN1-B10 Shippment & Packing
HSD104JXN1-B10 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
HSD104JXN1-B10 About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
HSD104JXN1-B10 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
HSD104JXN1-B10 FAQ:
Q: Do you accept sample orders for HSD104JXN1-B10 ?
A: Of course!sample order is welcome !
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: Can You declare my order of lcd panel HSD104JXN1-B10 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of HSD104JXN1-B10 ?
A: we will give you tracking number then you can trace your order form website.
