10.4 inch CCFL 640*480 20 pins TFT LCD Screen display NL6448BC33-63C
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-63C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-63C | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 243(W)×185.1(H)×11(D) Mm |
| Brightness: | 450 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Weight: | 475/500g (Typ./Max.) | Application: | Industrial |
Product Description
10.4 inch CCFL 640*480 20 pins TFT LCD Screen display NL6448BC33-63C
NL6448BC33-63C Product details :
| NEC LCD Screen NL6448BC33-63C | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-63C |
| Screen Size | 10.4 inches |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480 VGA 76PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 211.2(H)×158.4(V) mm |
| physical dimension | 243(H)×185.1(V) ×11(T) mm |
| Open area | 215.4(H)×161.8(V) mm |
| Surface treatment | Clear, Hard coating (3H), anti-reflection treatment |
| Display brightness | 450 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 6/19 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 40% NTSC |
| type of light source | CCFL [2 pcs], no driver |
| weight | 475/500g (Typ./Max.) |
| Frame rate | 60Hz |

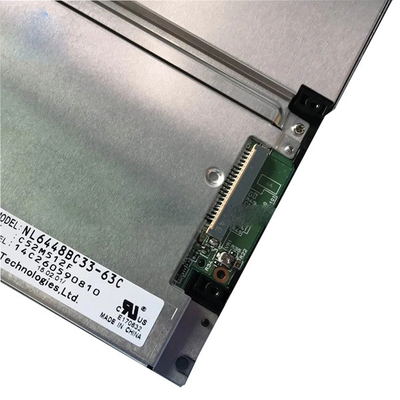

| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 10.4 inch CCFL 640*480 20 pins TFT LCD Screen display NL6448BC33-63C | |
NL6448BC33-63C Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
NL6448BC33-63C Payment :
1.We will send out the order within 1-3 days after confirming the payment.
2.You can choose DHL/TNT for fast shipping
3.We 100% tested one by one before shipping .If the product is faulty during shipping, please inform us immediately after your received it.
4.Our products have good apperance and function.You can place your order with 100% assurance.I promise all of my products work!!!
5.The products are of the highest quality,so if you are not happy with an item you have purchased,please contact our Customer Service Team .As soon as possible.We will be able to assist you with any returns and refunds based on the condition of the item.
NL6448BC33-63C Shippment & Packing
NL6448BC33-63C Shipping terms:
To guarantee the shipping time and safety delivery, we are ONLY able to ship item to the countries listed in Shipping & Packaging.
NL6448BC33-63C Warranty:
6 Months Warranty. Buy with confidence!
