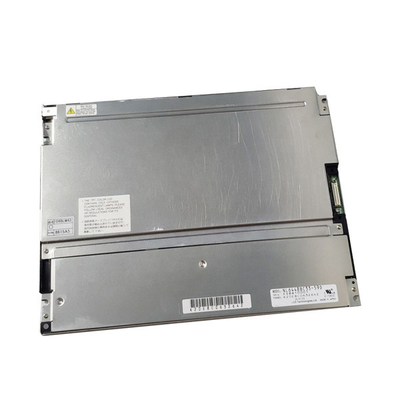

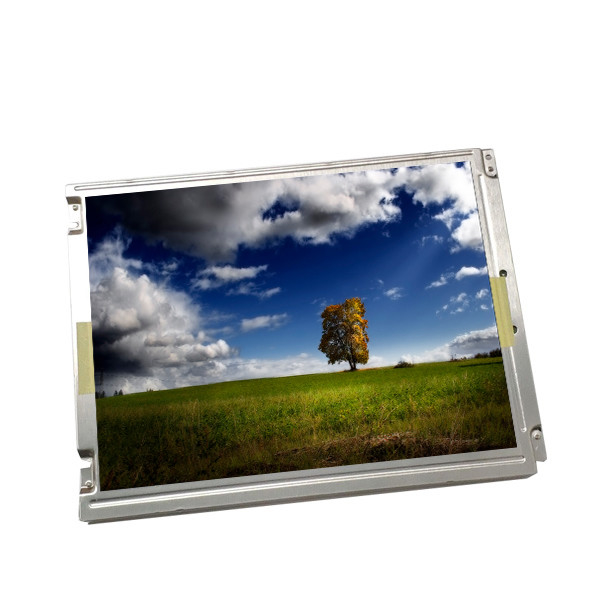

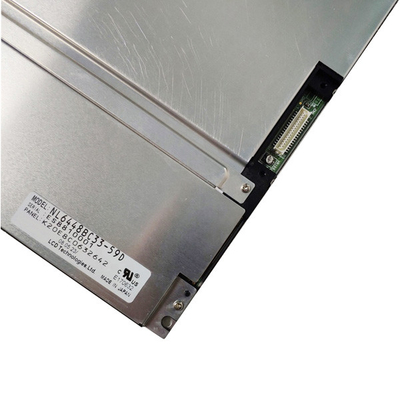

NEC a-Si TFT Lcd Display NL6448BC33-59D 10.4 inch 640*480 for industrial machine
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-59D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-59D | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 243(W)×185.1(H)×11(D) Mm |
| Viewing Angle: | 70/70/45/55 (Typ.)(CR≥10) | Response: | 8/25 (Typ.)(Tr/Td) Ms |
| Mass: | 475/500g (Typ./Max.) | Used For: | Industrial |
Product Description
NEC a-Si TFT Lcd Display NL6448BC33-59D 10.4 inch 640*480 for industrial machine
NL6448BC33-59D Product details :
| NEC LCD Screen NL6448BC33-59D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-59D |
| Screen Size | 10.4 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 211.2 × 158.4 mm (H×V) |
| physical dimension | 243 × 185.1 × 11 mm (H×V×D) |
| Visual size | 215.4 × 161.8 mm (H×V) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m²) | 450 (Typ.) |
| Contrast | 600: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 70/70/45/55 (Typ.)(CR≥10) |
| responding speed | 8/25 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 43% NTSC |
| Backlight type | 2 pcs CCFL, without driver |
| Screen weight | 475/500g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | CMOS (1 ch, 6-bit), connector, 31 pins |
| Supply voltage | 3.3/5.0V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 80 °C Working temperature: -10 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NEC a-Si TFT Lcd Display NL6448BC33-59D 10.4 inch 640*480 for industrial machine | |
NL6448BC33-59D Payment:
When buying on AliExpress, your payments are protected by Escrow. Track your order at any stage of delivery online and feel secure that payment will only be released to the supplier after you confirm receipt of your order. With Escrow, your credit card details are never exposed.
NL6448BC33-59D Shippment & Packing
NL6448BC33-59D About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
NL6448BC33-59D Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
NL6448BC33-59D FAQ:
Q: Do you accept sample orders for NL6448BC33-59D ?
A: Of course!sample order is welcome!
Q: Can you give me a discount if I need a large quantity of NL6448BC33-59D ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order NL6448BC33-59D now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: Can You declare my order of lcd panel NL6448BC33-59D at a very low value ?
A: Yes , we can . pls inform us before shipping .
