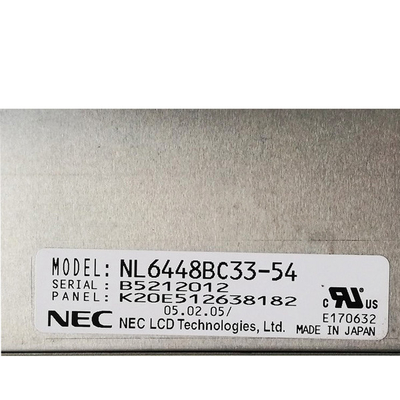

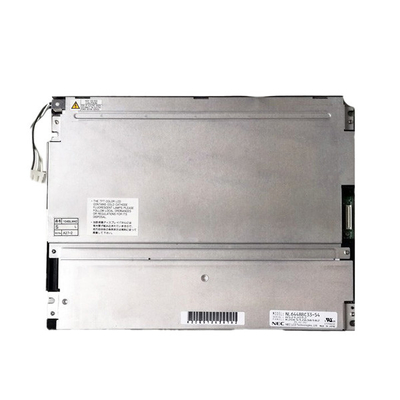

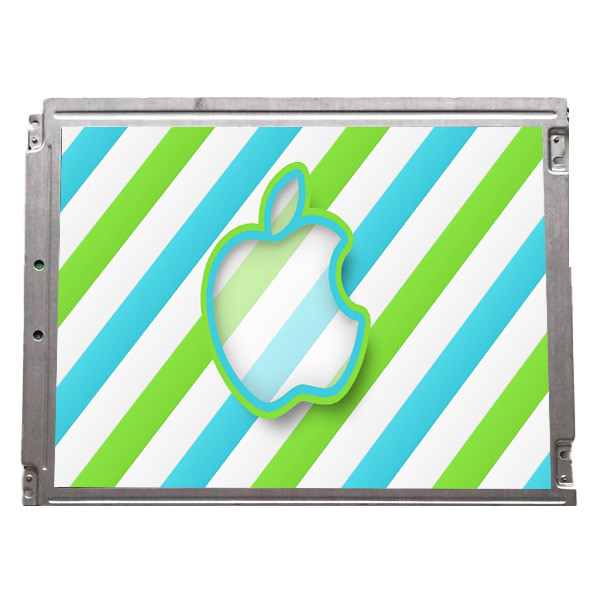

NL6448BC33-54 Brand New Original 10.4 inch 640*480 LCD Screen Display for NEC
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-54 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-54 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 243(W)×185.1(H) ×11(D) Mm |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 350:1 (Typ.) (TM) |
| Weight: | 465/490g (Typ./Max.) | Application: | Industrial |
Product Description
NL6448BC33-54 Brand New Original 8.4 inch 640*480 LCD Screen Display for NEC
NL6448BC33-54 Product details :
| NEC LCD Screen NL6448BC33-54 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-54 |
| Screen Size | 10.4 inches |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 640(RGB)×480, VGA, 76PPI |
| Pixel layout | RGB vertical bar |
| Display area | 211.2(W)×158.4(H) mm |
| Viewable area | 215.4(W)×161.8(H) mm |
| physical dimension | 243(W)×185.1(H) ×11(D) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Panel brightness | 220 cd/m² (Typ.) |
| Contrast | 350:1 (Typ.) (TM) |
| Viewing angle | 45/45/30/20 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 12 o'clock |
| Reaction time | 15/23 (Typ.)(Tr/Td) ms |
| Display color | 262K, 40% NTSC |
| type of light source | 2 pcs CCFL, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 465/490g (Typ./Max.) |
| Signal interface | CMOS (1 ch, 6-bit), 31 pins, connector |
| Drive screen voltage | 3.3/5.0V (Typ.)(VCC) |
| working environment | Work: -10 ~ 70 °C; Storage: -20 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC33-54 LCD SCREEN PANEL10.4 inch 640*480 for NEC | |
