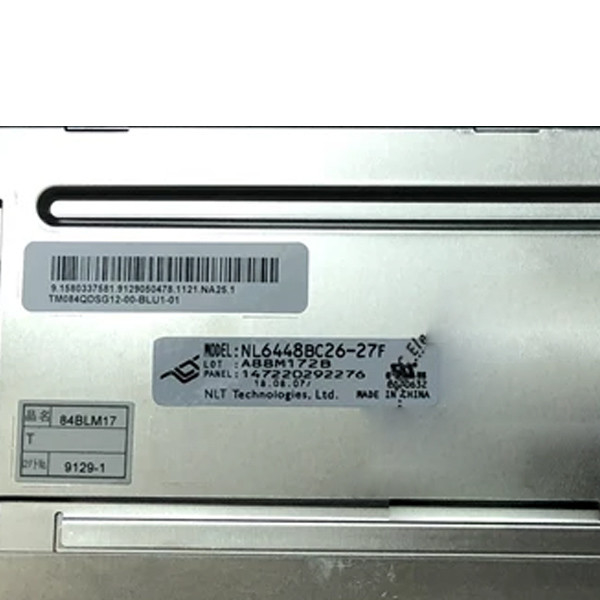

NL6448BC26-27F Brand New Original 8.4 inch 640*480 LCD Screen Display for NEC
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC26-27F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC26-27F | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 95PPI | Active Area: | 170.88(W)×128.16(H) Mm |
| Bezel Opening: | 174.0(W)×131.4(H) Mm | Outline Size: | 200(W)×152(H)×8.7(D) Mm |
| Response: | 3/15 (Typ.)(Tr/Td) Ms | Backlight: | 4 Strings WLED , 70K Hours , No Driver |
| Mass: | 260/280g (Typ./Max.) | Used For: | Industrial |
Product Description
NL6448BC26-27F Brand New Original 8.4 inch 640*480 LCD Screen Display for NEC
NL6448BC26-27F Product details :
| NEC LCD Screen NL6448BC26-27C | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC26-27F |
| Screen Size | 8.4 inches |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480 VGA 95PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 170.88(H)×128.16(V) mm |
| physical dimension | 200(H)×152(V) ×8.7(T) mm |
| Open areaL | 174.0(Horizontal)×131.4(Vertical) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Display brightness | 900 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (transmission) |
| Response time | 3/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 16.7M, 40% NTSC |
| type of light source | WLED [4 strings], 70K hours, no driver |
| weight | 260/280g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC26-27F Brand New Original 8.4 inch 640*480 LCD Screen Display for NEC | |
NL6448BC26-27F payment :
1.We will send out the order within 1-3 days after confirming the payment.
2.You can choose DHL/TNT for fast shipping
3.We 100% tested one by one before shipping .If the product is faulty during shipping, please inform us immediately after your received it.
4.Our products have good apperance and function.You can place your order with 100% assurance.I promise all of my products work!!!
5.The products are of the highest quality,so if you are not happy with an item you have purchased,please contact our Customer Service Team .As soon as possible.We will be able to assist you with any returns and refunds based on the condition of the item.
NL6448BC26-27F Shippment & Packing
NL6448BC26-27F Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
NL6448BC26-27F Contact us:
1. If there is any problem, please feel free to contact us , we will reply to you within 2 business day. (does not include holidays)
2. Working hours: from Monday to Saturday
3. If you do not receive a reply within 1-3 business days, please check your email or my messages in case your email provider has an excessive spam filter block or my emails. Add us to your contact and send us an email again.
4. Bulk orders are accepted, you will be offered lower prices for bulk orders.
NL6448BC26-27F FAQ:
Q: How long will I receive my goods of NL6448BC26-27F ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for NL6448BC26-27F ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of NL6448BC26-27F at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
