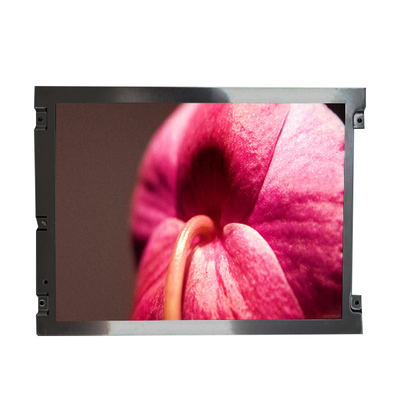

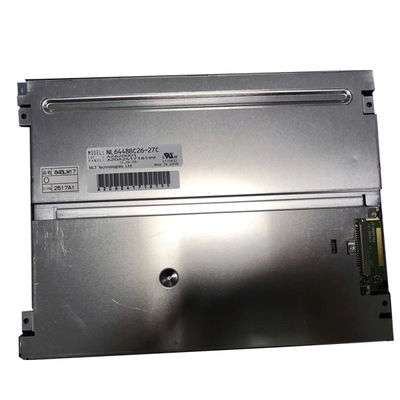

New and original LCD Screen Display 8.4 inch NL6448BC26-27C
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC26-27C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC26-27C | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 95PPI | Active Area: | 170.88(W)×128.16(H) Mm |
| Bezel Opening: | 174.0(W)×131.4(H) Mm | Outline Size: | 200(W)×152(H)×8.7(D) Mm |
| Luminance: | 900 Cd/m² (Typ.) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Mass: | 260/280g (Typ./Max.) | Used For: | Industrial |
Product Description
New and original LCD Screen Display 8.4 inch NL6448BC26-27C
NL6448BC26-27C Product details :
| NEC LCD Screen NL6448BC26-27C | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC26-27C |
| Screen Size | 8.4 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 95PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 170.88 × 128.16 mm (H×V) |
| physical dimension | 200 × 152 × 8.7 mm (H×V×D) |
| Visual size | 174.0 × 131.4 mm (H×V) |
| Surface treatment | Clear, Hard coating (2H), anti-reflection treatment |
| Brightness (cd/m²) | 900 (Typ.) |
| Contrast | 1000: 1 (Typ.) [Transmission] |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| responding speed | 3/15 (Typ.)(Tr/Td) ms |
| Number of colors | 262K/16.7M, 40% NTSC |
| Backlight type | 4 strings WLED, 70K hours, no driver |
| Screen weight | 260/280g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| New and original LCD Screen Display 8.4 inch NL6448BC26-27C | |
NL6448BC26-27C Terms of Service:
Thank you for reviewing the important information, I will tell you the important steps:
NO:1
The screen of the machine is inside the device, you need to disassemble the machine, and then send me the screen picture (this is very important, please pay attention),And tell me the length, width, and thickness of the screen.
NO:2
Could you please tell me if the display screen is not good, or the touch handwriting is not good, I will confirm the screen information
NL6448BC26-27C About Payment Information:
We accept Escrow service.
NL6448BC26-27C Shippment & Packing
NL6448BC26-27C Contact us:
1. If there is any problem, please feel free to contact us , we will reply to you within 2 business day. (does not include holidays)
2. Working hours: from Monday to Saturday
3. If you do not receive a reply within 1-3 business days, please check your email or my messages in case your email provider has an excessive spam filter block or my emails. Add us to your contact and send us an email again.
4. Bulk orders are accepted, you will be offered lower prices for bulk orders.
NL6448BC26-27C About Customs Duty & Handling Fee:
For all customers` orders, we do not charge handing fee, even 1pcs part.
When parts arrive at your local custom, if the parts were charged customs duty, we are not responsible for any customs duties or import taxes.
NL6448BC26-27C FAQ:
Q: Can I pay my order of NL6448BC26-27C via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NL6448BC26-27C ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of NL6448BC26-27C ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods NL6448BC26-27C ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
