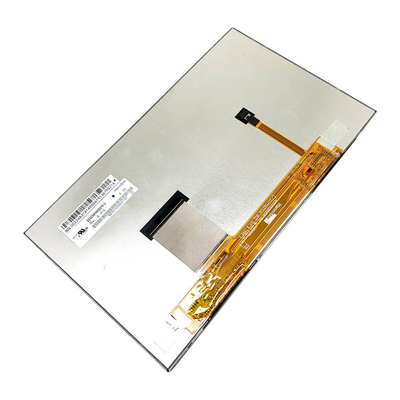

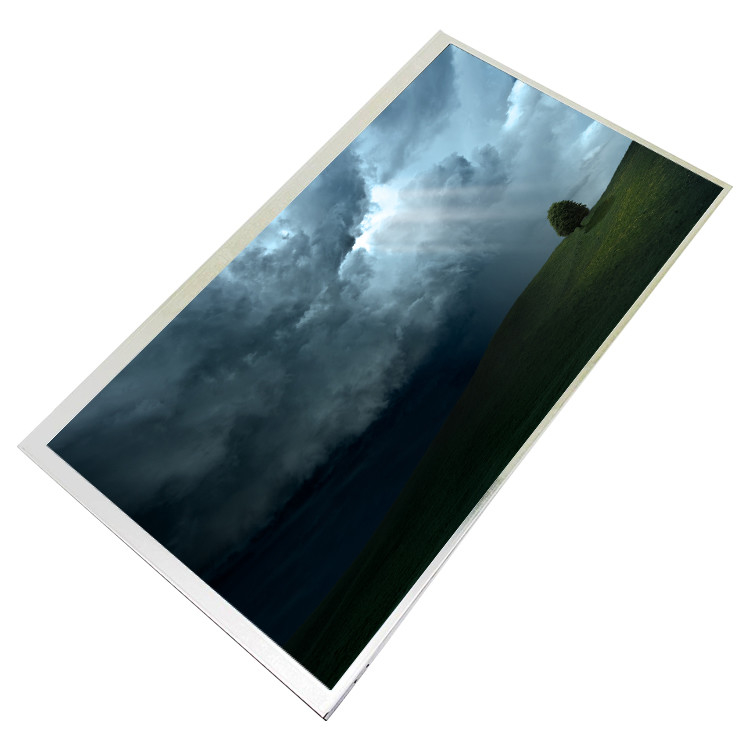

Hannstar HSD090IHW1-A10 1280*720 9.0 inch IPS TFT LCD module screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |

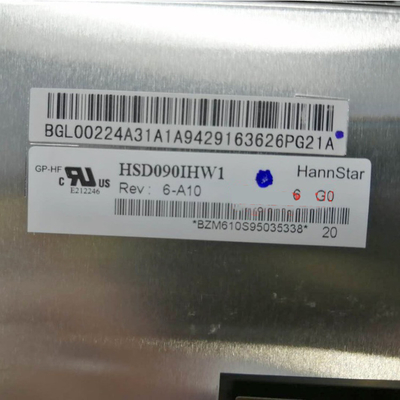

| Model Number: | HSD090IHW1-A10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD090IHW1-A10 | Diagonal Size: | 9.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA 163PPI | Active Area: | 198.912(W)×111.888(H) Mm |
| Bezel Opening: | 200.9(W)×113.8(H) Mm | Outline Dim.: | 210.7(W)×124.1(H)×8.35(D) Mm |
| Luminance: | 600 Cd/m² (Typ.) | Contrast Ratio: | 900:1 (Typ.) (TM) |
| Weight: | 225/235g (Typ./Max.) | Designed For: | Automotive Display |
Product Description
Hannstar HSD090IHW1-A10 1280*720 9.0 inch IPS TFT LCD module screen
HSD090IHW1-A10 Product details :
| HannStar LCD Screen HSD090IHW1-A10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD090IHW1-A10 |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 198.912(W)×111.888(H) mm |
| Bezel Opening | 200.9(W)×113.8(H) mm |
| Outline Dim. | 210.7(W)×124.1(H)×8.35(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 70% NTSC |
| Light Source | WLED [9S3P] , 30K hours , W/O Driver |
| Weight | 225/235g (Typ./Max.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) 60 pins FPC |
| Power Supply | 3.3/12.4/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Hannstar HSD090IHW1-A10 1280*720 9.0 inch IPS TFT LCD module screen | |
HSD090IHW1-A10 Features:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
HSD090IHW1-A10 Shippment & Packing
HSD090IHW1-A10 Abount Shipping Information:
We will ship out your items within 1-5 business days after the payment is cleared.
Standard shipping using international Airmail,Items ship from China and it takes 7-14 working days (2-3 weeks) to receive for most areas.
If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)
HSD090IHW1-A10 GUARANTEE AND RETURN:
1. We offer guarantee for all our products.
2. Buyers will bear the shipping cost of returning defective or non-defective items.
3. Returned items must be in good condition like the one we send, not damaged.
4. Returned items are subject to approval by us, must be in the original box as shipped.
5. Damaged items received must be reported within 2 days.
6. All non-seller error returns,shipping and handling charges are non-refundable.
HSD090IHW1-A10 FAQ:
Q: If I place order now,when will you ship the goods of HSD090IHW1-A10 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of HSD090IHW1-A10 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of HSD090IHW1-A10 ?
A: Of course!If you make a large order, we will give you a discount.
