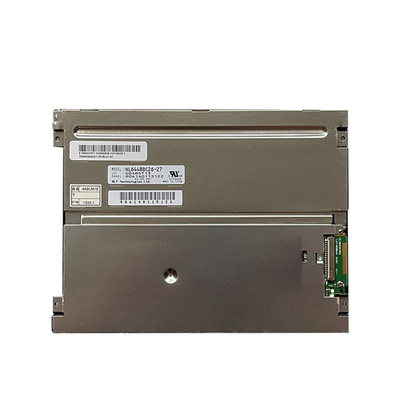

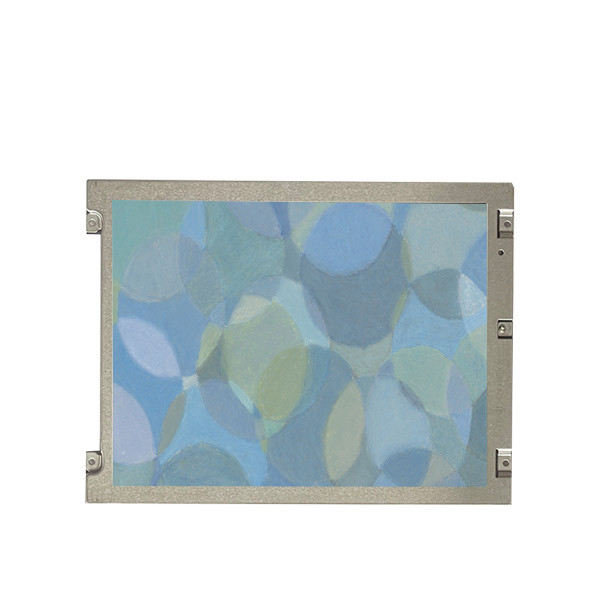

NL6448BC26-27 Brand New Original 8.4 inch LCD Screen Display for NEC
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC26-27 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC26-27 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 95PPI | Active Area: | 170.88(W)×128.16(H) Mm |
| Bezel Opening: | 174.0(W)×131.4(H) Mm | Outline (mm): | 200×152×8.7 (H×V×D) |
| Luminance: | 500 Cd/m² (Typ.) | Backlight: | 3 Strings WLED , 70K Hours , No Driver |
| Mass: | 260/280g (Typ./Max.) | Used For: | Industrial |
Product Description
NL6448BC26-27 Brand New Original 8.4 inch LCD Screen Display for NEC
NL6448BC26-27 Product details :
| NEC LCD Screen NL6448BC26-27 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC26-27 |
| Screen Size | 8.4 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 95PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 170.88 × 128.16 mm (H×V) |
| physical dimension | 200 × 152 × 8.7 mm (H×V×D) |
| Visual size | 174.0 × 131.4 mm (H×V) |
| Surface treatment | Clear, Hard coating (3H) |
| Brightness (cd/m²) | 500 (Typ.) |
| Contrast | 1000: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| responding speed | 3/15 (Typ.)(Tr/Td) ms |
| Number of colors | 262K/16.7M, 40% NTSC |
| Backlight type | 3 strings WLED, 70K hours, no driver |
| Screen weight | 260/280g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC26-27 Brand New Original 8.4 inch LCD Screen Display for NEC | |
NL6448BC26-27 Payment:
1.We provide one year warrantly, except for the used products.
2.About the payment terms,we can accept Bank Transfer,Paypal, Westem Union, MoneyGram Alipay and Ecrow tems.
3. Prices quoted are correct at time of this quotation but may be subject to change after one week due to currency fluctuations and change to quantity ordered.
NL6448BC26-27 Shippment & Packing
NL6448BC26-27 Shipment:
1.We ship to worldwide, per order have a tracking number.
2.Item will be shipped within 3 business days after we received a verified payment.
3.SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary , particularly during the holiday season, such as Christmas season and weeks before Chinese New Year Holiday, most warehouses will be full that it will cause delayed to deliver.
4.If you have not received your items within 30 days after payment for postage delivery (like china post),please let us know. We will further track the parcel and reply you ASAP. Our goal is customer satisfaction!
5.We support most shipping ways: DHL. UPS, FEDEX, EMS, HK Post,SG Post, China Post etc.
6.About delivery time(reference only).
NL6448BC26-27 Delivery time:
We will receive orders in the 2 days after,so sending the parcelto you,Shipping time depends on the efficiency of your local post office and customs. General country will be 15-20 days will arrive,lf you are in urgent need of a package,please choose DHL or EMS,usually in 7-10 days to reach.
NL6448BC26-27 Service hours:
lf you have any question, please contact us I will sincerely for your service, our service time for the Beijing time:8:00-12:00; 1: 30-6: 00;But we have 24 hours will have customer service for you to solve the problem.
NL6448BC26-27 FAQ:
Q: Can I pay my order of NL6448BC26-27 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of NL6448BC26-27 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: How to make payment of NL6448BC26-27 ?
A: We accept T/T , Paypal , western union .
