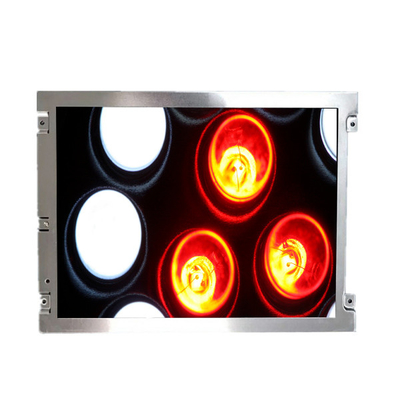

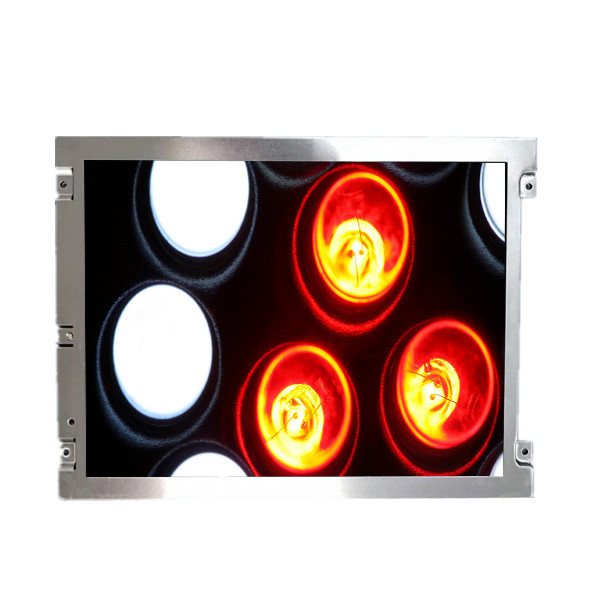

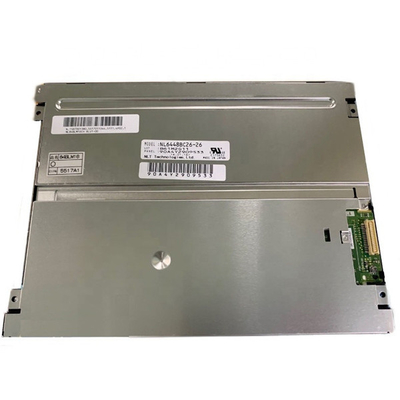

Original LCD Display Screen NL6448BC26-26 8.4 Inch 640*480 LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC26-26 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC26-26 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 95PPI | Active Area: | 170.88(W)×128.16(H) Mm |
| Bezel Opening: | 174.0(W)×131.4(H) Mm | Outline Size: | 200(W)×152(H) ×8.7(D) Mm |
| Brightness: | 500 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Panel Weight: | 260/280g (Typ./Max.) | Application: | Industrial |
Product Description
Original LCD Display Screen NL6448BC26-26 8.4 Inch 640*480 LCD Panel
NL6448BC26-26 Product details :
| NEC LCD Screen NL6448BC26-26 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC26-26 |
| Screen Size | 8.4 inches |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 640(RGB)×480 VGA 95PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 170.88(H)×128.16(V) mm |
| physical dimension | 200(H)×152(V) ×8.7(T) mm |
| Open area | 174.0(H)×131.4(V) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Display brightness | 500 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (transmission) |
| Response time | 3/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K, 40% NTSC |
| type of light source | WLED [3 strings], 70K hours, no driver |
| weight | 260/280g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 31 pins CMOS (1 ch, 6-bit), connector |
| Voltage supply | 3.3/5.0V (Typ.) |
| Application Environment | Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| Original LCD Display Screen NL6448BC26-26 8.4 Inch 640*480 LCD Panel | |
