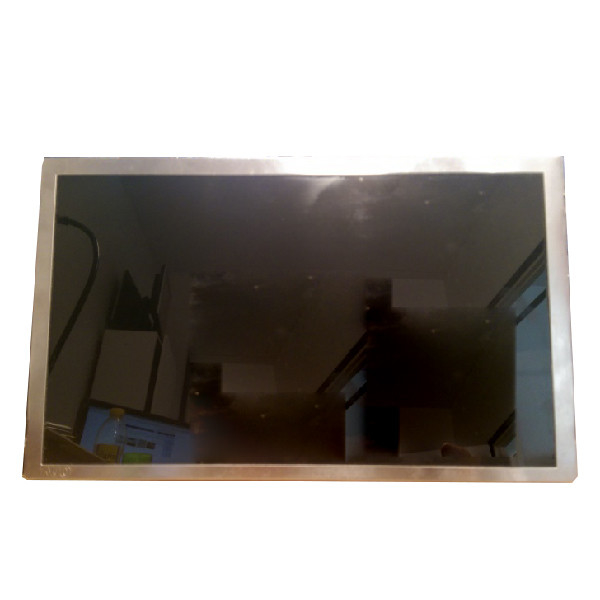

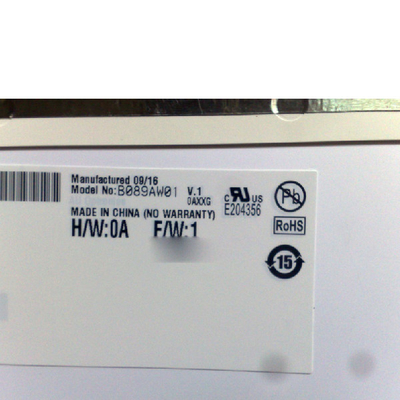

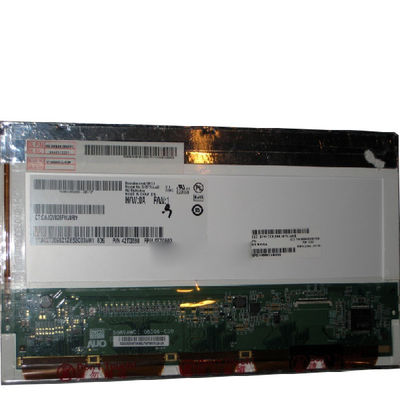

AUO 8.9 INCH B089AW01 V1 1024*600 40 PIN LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B089AW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B089AW01 V1 | Diagonal Size: | 8.9" |
|---|---|---|---|
| Resolution: | 1024(RGB)*600 [WSVGA] 133PPI | Active Area: | 195.072(H)×113.4(V) Mm |
| Outline Dim.: | 213.4(H)×129.6(V) ×5.45(T) Mm | Brightness: | 180 Cd/m² (Typ.) |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Response Time: | 12/18 (Typ.)(Tr/Td) Ms |
| Number Of: | Number Of | Apply To: | Netbook PC |
Product Description
AUO 8.9 INCH B089AW01 V1 1024*600 40 PIN LCD SCREEN
B089AW01 V1 Product details :
| Brand | AUO |
| Model Name | B089AW01 V1 |
| Screen size | 8.9 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1024(RGB)×600 [WSVGA] 133PPI |
| Pixel Format | RGB triangle |
| Display size | 195.072(H)×113.4(V) mm |
| Outline Dim. | 213.4(H)×129.6(V) ×5.45(T) mm |
| Visual size | 198.27(H)×116.6(V) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% |
| Brightness | 180 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Number of | 262K, 51% NTSC |
| Backlight type | 3S8P WLED, 10K hours, with LED driver |
| Apply to | Netbook PC |
| Refresh rate | 60Hz |
| Touch function | Without |
| Interface Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 65 °C |
| AUO 8.9 INCH B089AW01 V1 1024*600 40 PIN LCD SCREEN | |
