NL6448BC26-09D Brand New Original 8.4 inch LCD Screen Display for Industrial Equipment
All Category

LCD Screen Display Panel

Industrial LCD Panel Display

LCD Touch Panel Display

LCD Laptop Screen

Stretched Bar LCD

Medical Mobile Workstation

LCD Screen Accessories

Sunlight Readable Monitor

Open Frame LCD Monitor

LCD Video Wall

Floor Standing Digital Signage

Digital Signage And Displays

Medical LCD Panel

Portable Monitor

Stretched Bar LCD Display

Multi Touch Screen Panel
NL6448BC26-09D Brand New Original 8.4 inch LCD Screen Display for Industrial Equipment
  • name
  • name
  • name

NL6448BC26-09D Brand New Original 8.4 inch LCD Screen Display for Industrial Equipment

Brand Name: NEC
Model Number: NL6448BC26-09D
MOQ: 10pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model P/N:
NL6448BC26-09D
Diagonal Size:
8.4"
Resolution:
640(RGB)×480, VGA 95PPI
Active Area:
170.88(W)×128.16(H) Mm
Bezel Opening:
174.0(W)×131.4(H) Mm
Outline Dim.:
200(H)×152(V) Mm
Luminance:
450 Cd/m² (Typ.)
Contrast Ratio:
600:1 (Typ.) (TM)
Weight:
330/350g (Typ./Max.)
Designed For:
Industrial
Supply Ability:
100000 Unit/Units per Month
Product Description

NL6448BC26-09D Brand New Original 8.4 inch LCD Screen Display for Industrial Equipment



NL6448BC26-09D Product details :

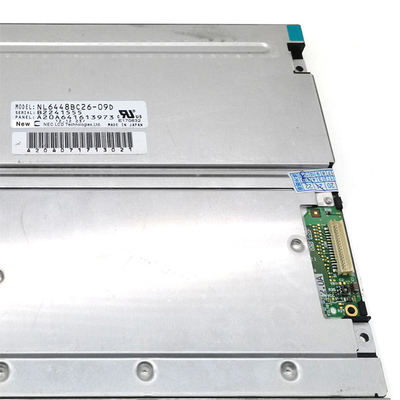

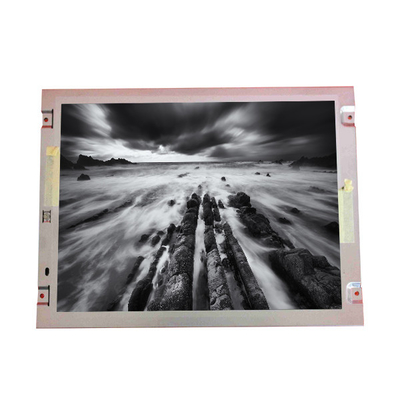

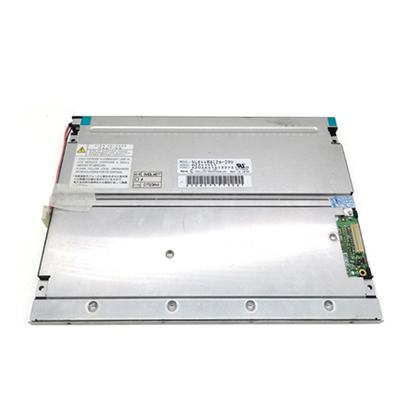

NEC LCD Screen NL6448BC26-09D
Manufacturer NEC
Model Name NL6448BC26-09D
Screen Size 8.4 inches
Panel type a-Si TFT-LCD, LCM
Number of pixels 640(RGB)×480, VGA, 95PPI
Pixel layout RGB vertical bar
Display area 170.88(W)×128.16(H) mm
Viewable area 174.0(W)×131.4(H) mm
physical dimension 200(W)×152(H) mm
Surface treatment Matte, Hard coating (3H)
Panel brightness 450 cd/m² (Typ.)
Contrast 600:1 (Typ.) (TM)
Viewing angle 80/80/80/60 (Typ.)(CR≥10)
Operating mode TN, normally white display, transmissive
Best perspective 6 o'clock
Reaction time 6/19 (Typ.)(Tr/Td) ms
Display color 262K, 40% NTSC
type of light source 2 pcs CCFL, without driver
working frequency 60Hz
touch screen No touch
Panel weight 330/350g (Typ./Max.)
Signal interface CMOS (1 ch, 6-bit), 31 pins, connector
Drive screen voltage 3.3/5.0V (Typ.)(VCC)
working environment Work: -20 ~ 70 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²)
NL6448BC26-09D Brand New Original 8.4 inch LCD Screen Display for Industrial Equipment



NL6448BC26-09D Payment:



We accept alipay here.



All major credit cards are accepted through secure payment processor ESCROW.



We also accept T/T, Western Union, Moneygram.



NL6448BC26-09D Shippment & Packing

NL6448BC26-09D Brand New Original 8.4 inch LCD Screen Display for Industrial Equipment 0

NL6448BC26-09D Abount Shipping Information:


We will ship out your items within 1-5 business days after the payment is cleared.



Standard shipping using international Airmail,Items ship from China and it takes 7-14 working days (2-3 weeks) to receive for most areas.



If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)



NL6448BC26-09D Return:



Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.


Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.



NL6448BC26-09D FAQ:



Q: If I order NL6448BC26-09D now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.



Q: Do you accept sample orders for NL6448BC26-09D ?

A: Of course!sample order is welcome !



Q: How long will I receive my goods of NL6448BC26-09D ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.



Q: How long is the warranty of NL6448BC26-09D ?

A: 90 days warranty .
