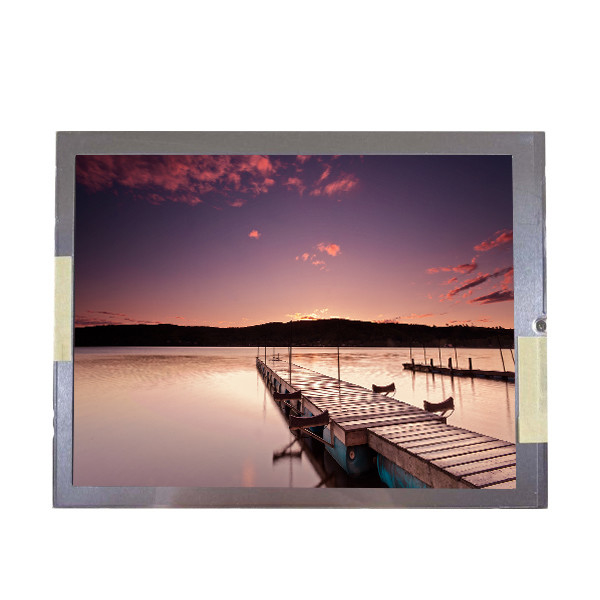

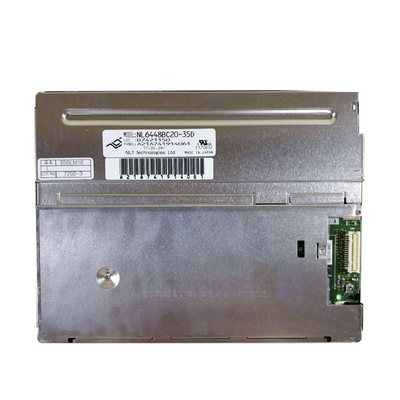

NEC a-Si TFT Lcd Display NL6448BC20-35D 6.5 inch 640*480 for industrial machine
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC20-35D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC20-35D | Diagonal Size: | 6.5" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 122PPI | Active Area: | 132.48(W)×99.36(H) Mm |
| Bezel Opening: | 135.5(W)×102.4(H) Mm | Outline Dim.: | 153(W)×118(H) Mm |
| Luminance: | 600 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Weight: | 150/160g (Typ./Max.) | Designed For: | Industrial |
Product Description
NEC a-Si TFT Lcd Display NL6448BC20-35D 6.5 inch 640*480 for industrial machine
NL6448BC20-35D Product details :
| NEC LCD Screen NL6448BC20-35D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC20-35D |
| Screen Size | 6.5 inch |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480 VGA 122PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 132.48(H)×99.36(V) mm |
| physical dimension | 153(H)×118(V) mm |
| Open area | 135.5(H)×102.4(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 600 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (transmission) |
| Response time | 3/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K, 40% NTSC |
| type of light source | WLED [3 strings], 70K hours, no driver |
| weight | 150/160g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 31 pins CMOS (1 ch, 6-bit), connector |
| Voltage supply | 3.3/5.0V (Typ.) |
| Application Environment | Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NEC a-Si TFT Lcd Display NL6448BC20-35D 6.5 inch 640*480 for industrial machine | |
