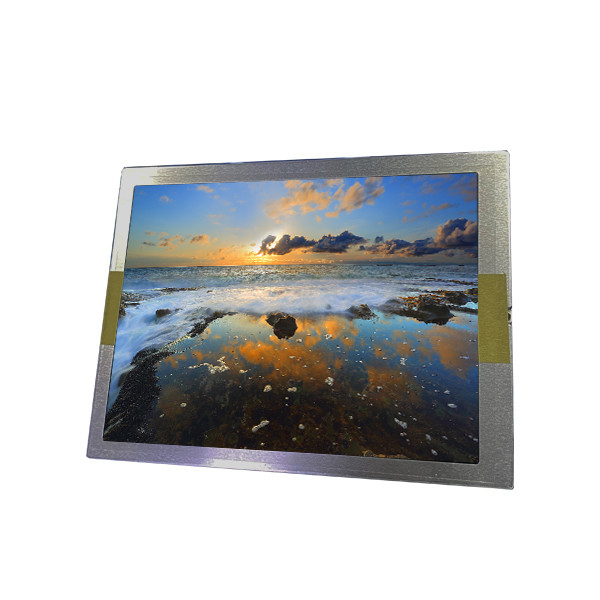

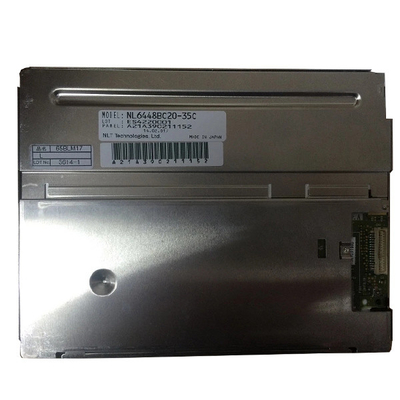

6.5 inch LCM 640x480 262K WLED TTL NL6448BC20-35C LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC20-35C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC20-35C | Diagonal Size: | 6.5" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 122PPI | Active Area: | 132.48(W)×99.36(H) Mm |
| Bezel Opening: | 135.5(W)×102.4(H) Mm | Outline Dim.: | 153(H)×118(V) ×8.7(D) Mm |
| Luminance: | 1000 Cd/m² (Typ.) | Response Time: | 3/15 (Typ.)(Tr/Td) |
| Weight: | 155/165g (Typ./Max.) | Designed For: | Industrial / Outdoor High Brightness |
Product Description
6.5 inch LCM 640x480 262K WLED TTL NL6448BC20-35C LCD Screen Display
NL6448BC20-35C Product details :
| NEC LCD Screen NL6448BC20-35C | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC20-35C |
| Screen Size | 6.5 inch |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 640(RGB)×480, VGA, 122PPI |
| Pixel layout | RGB vertical bar |
| Display area | 132.48(W)×99.36(H) mm |
| Viewable area | 135.5(W)×102.4(H) mm |
| physical dimension | 153(W)×118(H) mm |
| Surface treatment | Clear, Hard coating (2H), anti-reflection treatment |
| Panel brightness | 1000 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Reaction time | 3/15 (Typ.)(Tr/Td) |
| Display color | 262K, 40% NTSC |
| type of light source | 4 strings WLED, 70K hours, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 155/165g (Typ./Max.) |
| Signal interface | CMOS (1 ch, 6-bit), 31 pins, connector |
| Drive screen voltage | 3.3/5.0V (Typ.) |
| working environment | Work: -30 ~ 80 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 6.5 inch LCM 640x480 262K WLED TTL NL6448BC20-35C LCD Screen Display | |
NL6448BC20-35C PAYMENT:
After you cancelled the order, money will back to your account within 1-15 business days
NL6448BC20-35C Shippment & Packing
NL6448BC20-35C SHIPPING:
Please confirm your address before payment.
We will send the items within 24 hours once your payment is completed.(Holidays may be extended)
NL6448BC20-35C WARRANTY:
1. We will offer you90 days warranty.
2.We test one by one before shipping, 100% working well before shipping.Please rest assured purchase.
3. We have a professional team to pack it very well to avoid damage, so please don't worry about the package.
4.Buyers are only responsible for the return shipping fees for warranty(In most buyers will onlyhave to return the problem components than the entire package.)
5.Replace new and good if you got the fake products.But please make sure that is not used and not man-made damaged.
6.Before returning items, please make sure you get to our return and write "gift" on the delivery sheet.Please use regular postal and give us the tracking number.Once we receive the items, we will repair them or exchange them as soon as possible.
7.Please check the parcel appearance carefully when you receive it and confirm if there is appearance breakage.If it's damaged, please do not sign for it and provide pictures of the package as well as the proof document from your local post office. We will try our best to help you to solve the problem.
8.If you find the product does not work normally , please check twice to confirm it and contact us at the first time.Customer should pay for the return shipping fee. We refuse any refund for objective cause and damage of the product due to your improper installation.
NL6448BC20-35C Important Tips:
Please testing before fixing and please don't remove the mark before you have confirm the product has not any problem.If you are not a professional, so please don't in their installation.Buyer once remove the mark, we don't offer any warranty.
If you are satisfied with the products after testing, then you may install on your machine.Tf youare not satisfied , please contact us timely , this is our office hour:Monday to Saturday 9:30 am to6:30 pm.(China working time). We will try our best to help you,thanks !
NL6448BC20-35C FAQ:
Q: If I order NL6448BC20-35C now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: How long will I receive my goods of NL6448BC20-35C ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of NL6448BC20-35C ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of lcd display screen NL6448BC20-35C at a very low value ?
A: Yes , we can . pls inform us before shipping .
