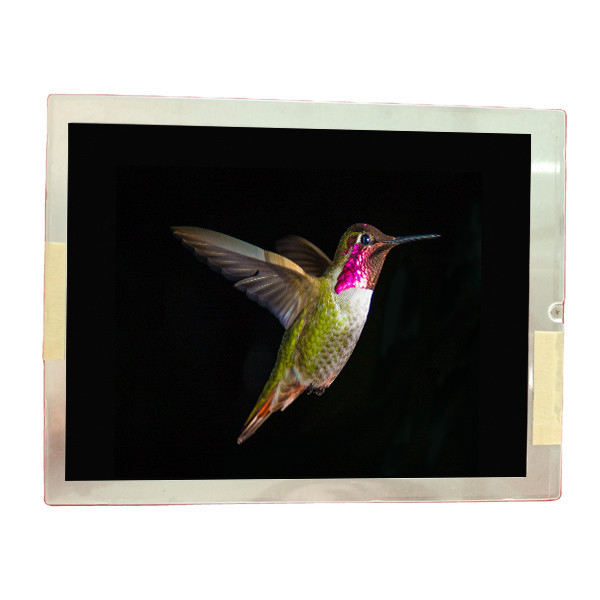

Name: NL6448BC20-30F 6.5 inch TFT 640*480 LVDS 20pin Industrial LCD display for NEC
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: NL6448BC20-30F
Availability: InStock

Brand Name:	NEC
Model Number:	NL6448BC20-30F
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model P/N:

NL6448BC20-30F

Diagonal Size:

6.5"

Resolution:

640(RGB)×480, VGA 122PPI

Active Area:

132.48(W)×99.36(H) Mm

Bezel Opening:

135.5(W)×102.4(H) Mm

Outline Size:

153(W)×118(H)(D) Mm

Luminance:

1000 Cd/m² (Typ.)

Contrast Ratio:

800 : 1 (Typ.) (TM)

Mass:

150/160g (Typ./Max.)

Used For:

Industrial / Outdoor High Brightness

Supply Ability:

100000 Unit/Units per Month

Product Description

NL6448BC20-30F 6.5 inch TFT 640*480 LVDS 20pin Industrial LCD display for NEC

NL6448BC20-30F Product details :

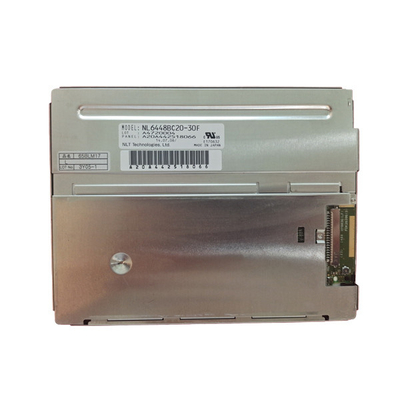

NEC LCD Screen NL6448BC20-30F
Manufacturer	NEC
Model Name	NL6448BC20-30F
Screen Size	6.5 inch
Screen type	LCM, a-Si TFT-LCD
Resolution	640(RGB)×480 [VGA] 122PPI
Pixel configuration	RGB vertical bar
Display size	132.48 × 99.36 mm (H×V)
physical dimension	153 × 118 mm (H×V×D)
Visual size	135.5 × 102.4 mm (H×V)
Surface treatment	Clear, Hard coating (3H)
Brightness (cd/m²)	1000 (Typ.)
Contrast	800: 1 (Typ.) [Transmission]
Optical mode	TN, normally white display, transmissive
Viewing angle	80/80/80/80 (Typ.)(CR≥10)
responding speed	3/15 (Typ.)(Tr/Td) ms
Number of colors	262K/16.7M, 40% NTSC
Backlight type	4 strings WLED, 70K hours, optional
Screen weight	150/160g (Typ./Max.)
Used for	Industrial / Outdoor High Brightness
Refresh rate	60Hz
Touch function	No touch
Interface Type	20 pins LVDS (1 ch, 6/8-bit), connector
Voltage supply	3.3V (Typ.)
Application Environment	Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²)
*NL6448BC20-30F 6.5 inch TFT 640480 LVDS 20pin Industrial LCD display for NEC**

NL6448BC20-30F Extremely Important:

• Please review the product image and description carefully before purchasing.

• The Screen Size, Resolution and Connector Type must be the same as our screen.

• If you are not sure, please contact us and provide us with specific model and pictures of your current screen.

NL6448BC20-30F Also Note:

• You will receive a 100% compatible screen. The exact brand and part number of the screen you will receive is determined by market availability.

• We recommend a professional repair shop or installation by an experienced person.

• If you have any questions about the connection of our products, please contact us for installation tutorial videos or installation pictures.

NL6448BC20-30F Shippment & Packing

NL6448BC20-30F 6.5 inch TFT 640*480 LVDS 20pin Industrial LCD display for NEC 0

NL6448BC20-30F Warranty:

1: We will provide 90 days warranty.

2:Buyers are only responsible for the return shipping fees for warran-ty items. (In most cases, buyers will only have to return the problem components rather than the entire package.)

3:Before returning items, please make sure you get to our return ad-dress,and write“gift”on the delivery sheet. Please use regular postal service and give us the tracking number. Once we receive the

NL6448BC20-30F RETURN POLICY:

Customer should return items in original condition within 3 days if any item is defective upon receipt. Buyer is responsible for return shipping & handling costs.

NL6448BC20-30F FAQ:

Q: Do you accept the NL6448BC20-30F sample order?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you test the lcd panel NL6448BC20-30F before shipping ?

A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.

Q: How long is the warranty of NEC LCD PANEL NL6448BC20-30F ?

A: 90DAYS.
