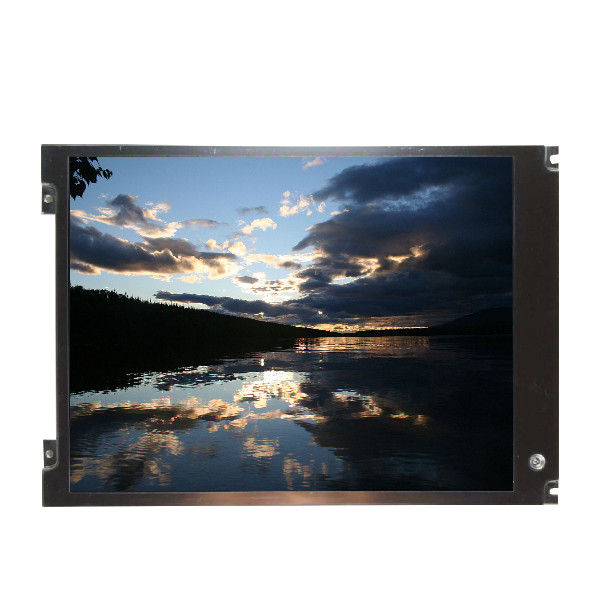

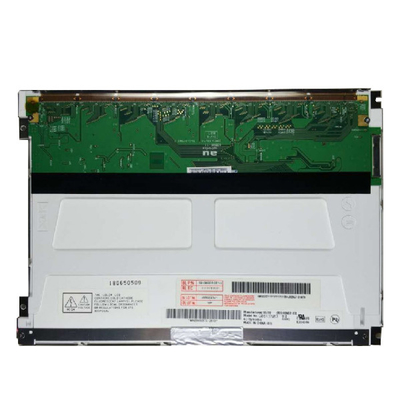

800*600 8.4inch 20pins LVDS CCFL TFT LCD Screen B084SN03 V0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B084SN03 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B084SN03 V0 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600 SVGA 119PPI | Active Area: | 170.4(W)×127.8(H) Mm |
| Outline Size: | 203(W)×142.5(H) Mm | Brightness: | 220 Cd/m² (Typ.) |
| Viewing Angle: | 60/60/60/40 (Typ.)(CR≥10) | Number Of: | 262K, 48% NTSC |
| Application: | Industrial | Interface Type: | LVDS (1 Ch, 6-bit), 20 Pins, Connector |
Product Description
800*600 8.4inch 20pins LVDS CCFL TFT LCD Screen B084SN03 V0
B084SN03 V0 Product details :
| Manufacturer | AUO |
| Model Name | B084SN03 V0 |
| Screen size | 8.4 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×600 SVGA 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 170.4(Horizontal)×127.8(Vertical) mm |
| Outline Dim. | 203(W)×142.5(H) mm |
| Bezel Opening | 173.8(Horizontal)×131.2(Vertical) mm |
| Brightness | 220 cd/m² (Typ.) |
| Contrast | 350:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Display Mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/60/40 (Typ.)(CR≥10) |
| Response Time | 10/25 (Typ.)(Tr/Td) ms |
| Number of | 262K, 48% NTSC |
| Backlight type | 1 pcs CCFL, 20K hours, no driver |
| Screen weight | 215±10g |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal system | LVDS (1 ch, 6-bit), 20 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C |
| 800*600 8.4inch 20pins LVDS CCFL TFT LCD Screen B084SN03 V0 | |
We have the supply of technology, can provide you with technical advide.Please send your RFQ(request for quoting) to get latest price.
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition. If you need more than 10 pcs, please contact us for a good discount.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.We have the supply of technology, can provide you with technical adviPlease send your RFQ(request for quoting) to get latest price.
B084SN03 V0 About Shipping:
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
B084SN03 V0 Delivery time is approx:
B084SN03 V0 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
B084SN03 V0 FAQ:
Q: How to order AUO lcd panel B084SN03 V0 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the B084SN03 V0 before shipping ?
A: Of course , 8.4 inch lcd screen B084SN03 V0 was Strictly tested before shipping.
Q: What happen if the B084SN03 V0 received can't work ?
A: B084SN03 V0 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: How long the warranty of the B084SN03 V0 ?
A: 90 days .
