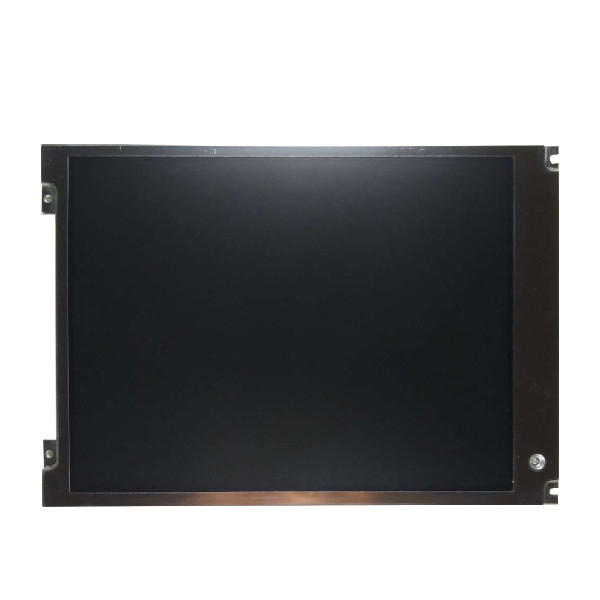

800*600 8.4inch 20pins LVDS CCFL TFT LCD Screen B084SN03
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B084SN03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B084SN03 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600 SVGA 119PPI | Active Area: | 170.4(W)×127.8(H) Mm |
| Outline Size: | 173.8(H)×131.2(V) Mm | Brightness: | 200 Cd/m² (Typ.) |
| Viewing Angle: | 60/60/60/40 (Typ.)(CR≥10) | Number Of: | 262K, 47% NTSC |
| Application: | Industrial | Interface Type: | LVDS (1 Ch, 6-bit), 20 Pins, Connector |
Product Description
800*600 8.4inch 20pins LVDS CCFL TFT LCD Screen B084SN03
B084SN03 Product details :
| AUO LCD SCREEN B084SN03 | |
| Panel Brand | AUO |
| Model Name | B084SN03 |
| Screen size | 8.4 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×600 SVGA 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 170.4(Horizontal)×127.8(Vertical) mm |
| Outline Dim. | 203(W)×142.5(H) mm |
| Bezel Opening | 173.8(H)×131.2(V) mm |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 350:1 (Typ.) (TM) |
| Best angle | 12 o'clock |
| Operating Mode | TN, Normally White, Transmissive |
| Viewing angle | 60/60/60/40 (Typ.)(CR≥10) |
| Responding | 10/25 (Typ.)(Tr/Td) ms |
| Number of | 262K, 47% NTSC |
| Backlight type | 1 pcs CCFL, 10K hours, without driver |
| Screen weight | 230±10g |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Interface Type | LVDS (1 ch, 6-bit), 20 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C |
| 800*600 8.4inch 20pins LVDS CCFL TFT LCD Screen B084SN03 | |
We have the supply of technology, can provide you with technical advide.Please send your RFQ(request for quoting) to get latest price.
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition. If you need more than 10 pcs, please contact us for a good discount.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.We have the supply of technology, can provide you with technical adviPlease send your RFQ(request for quoting) to get latest price.
B084SN03 About Shipping:
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
B084SN03 Delivery time is approx:
B084SN03 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
B084SN03 FAQ:
Q: How do you ship my goods B084SN03 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of AUO B084SN03 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel glass AUO B084SN03 at a very low value ?
A: Yes , we can . pls inform us before shipping .
B084SN03 Shippment & Packing
