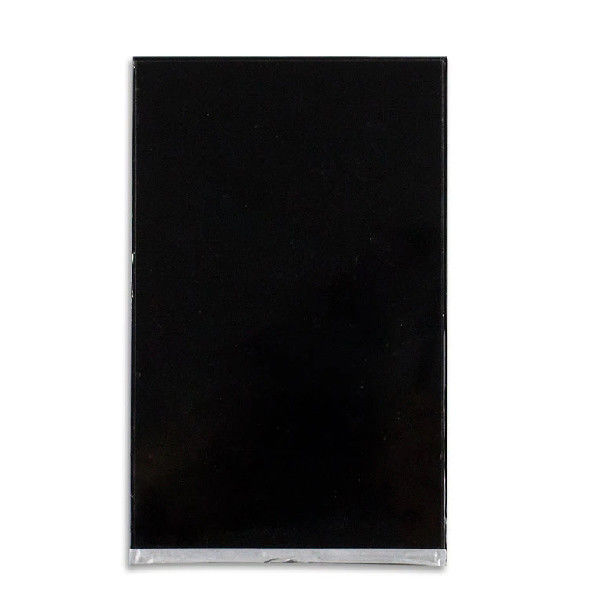

B080UAN02.0 1200*1920 45 pins for AUO LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B080UAN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B080UAN02.0 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 1200(RGB)×1920 WUXGA 283PPI | Active Area: | 107.64 × 172.224 (H×V) Mm |
| Outline Size: | 114.6(W)×184.1(H) ×3.95(D) Mm | Brightness: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Weight: | 80.0g (Max.) |
| Application: | Pad & Tablet | Interface Type: | 45 Pins MIPI (4 Data Lanes), Connector |
Product Description
1200x1920 MIPI Interface 45 pins 8 inch TFT LCD Screen Display B080UAN01.4
B080UAN02.0 Product details :
| AUO LCD SCREEN B080UAN01.4 | |
| Panel Brand | AUO |
| Model Name | B080UAN01.4 |
| Screen size | 8.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1200(RGB)×1920 WUXGA 283PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 107.64 × 172.224 (H×V) mm |
| Outline Dim. | 114.6(W)×184.6(H) ×3.65(D) mm |
| Treatment | Hard coating (1H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (transmission) |
| View Direction | Symmetry |
| Operating Mode | AHVA, normally black display, transmissiv |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 16.7M, 60% NTSC |
| Backlight type | 7S3P WLED, 15K hours, without driver |
| Screen weight | 90.0g (Max.) |
| Apply to | Pad & Tablet |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Interface Type | MIPI (4 data lanes), 45 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: -20 ~ 60 °C; Storage: -30 ~ 70 °C |
| 1200x1920 MIPI Interface 45 pins 8 inch TFT LCD Screen Display B080UAN01.4 | |
B080UAN02.0 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B080UAN02.0 About Shipping:
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
B080UAN02.0 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
B080UAN02.0 Return and feedback:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any
requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
B080UAN02.0 FAQ:
Q: How to order BOE lcd panel B080UAN02.0 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the B080UAN02.0 before shipping ?
A: Of course , 8.0 inch lcd screen B080UAN02.0 was Strictly tested before shipping.
Q: What happen if the B080UAN02.0 received can't work ?
A: B080UAN02.0 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: How long the warranty of the B080UAN02.0 ?
A: 90 days .
B080UAN02.0 Shippment & Packing
