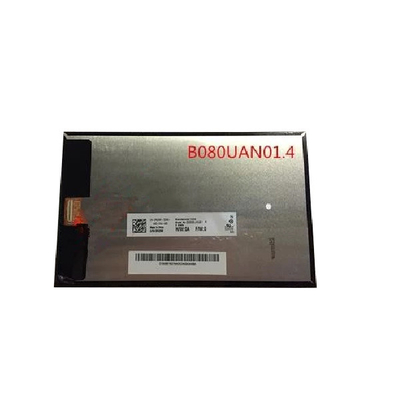

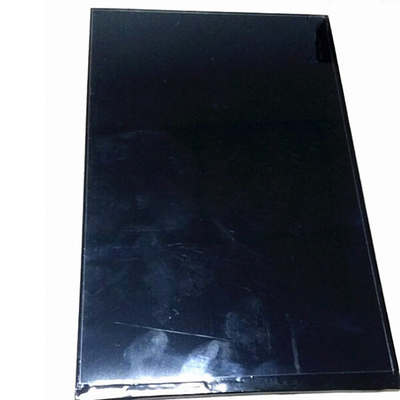

1200x1920 MIPI Interface 45 pins 8 inch TFT LCD Screen Display B080UAN01.4
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B080UAN01.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B080UAN01.4 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 1200(RGB)×1920 WUXGA 283PPI188PPI | Active Area: | 107.64 × 172.224 (H×V) Mm |
| Outline Size: | 1200(RGB)×1920 WUXGA 283PPI | Brightness: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Weight: | 90.0g (Max.) |
| Application: | Pad & Tablet | Interface Type: | MIPI (4 Data Lanes), 45 Pins, Connector |
Product Description
1200x1920 MIPI Interface 45 pins 8 inch TFT LCD Screen Display B080UAN01.4
B080UAN01.4 Product details :
| AUO LCD SCREEN B080UAN01.4 | |
| Panel Brand | AUO |
| Model Name | B080UAN01.4 |
| Screen size | 8.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1200(RGB)×1920 WUXGA 283PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 107.64 × 172.224 (H×V) mm |
| Outline Dim. | 114.6(W)×184.6(H) ×3.65(D) mm |
| Treatment | Hard coating (1H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (transmission) |
| View Direction | Symmetry |
| Operating Mode | AHVA, normally black display, transmissiv |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 16.7M, 60% NTSC |
| Backlight type | 7S3P WLED, 15K hours, without driver |
| Screen weight | 90.0g (Max.) |
| Apply to | Pad & Tablet |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Interface Type | MIPI (4 data lanes), 45 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: -20 ~ 60 °C; Storage: -30 ~ 70 °C |
| 1200x1920 MIPI Interface 45 pins 8 inch TFT LCD Screen Display B080UAN01.4 | |
