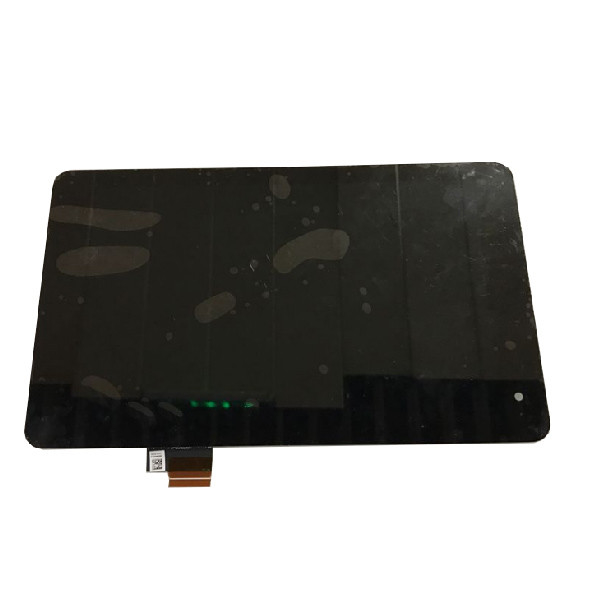

AUO 8.0 inch B080EAN03.1 800*1280 188PPI LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B080EAN03.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B080EAN03.1 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×1280 WXGA 188PPI | Active Area: | 107.64 × 172.224 (H×V) Mm |
| Bezel Opening: | 154.4(W)×93.44(H) Mm | Outline Size: | 114.8(W)×184.7(H) ×3.65(D) Mm |
| Brightness: | 400 Cd/m² (Typ.) | Display Mode: | AHVA, Normally Black Display, Transmissiv |
| Weight: | 75.0g (Max.) | Application: | Pad & Tablet |
Product Description
AUO 8.0 inch B080EAN03.1 800*1280 188PPI LCD SCREEN
B080EAN03.1 Product details :
| AUO LCD SCREEN B080EAN03.1 | |
| Panel Brand | AUO |
| Model Name | B080EAN03.1 |
| Diagonal Size | 8.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×1280 WXGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 107.64 × 172.224 (H×V) mm |
| Outline Dim. | 114.8(W)×184.7(H) ×3.65(D) mm |
| Treatment | Glare (Haze 0%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (transmission) |
| Best angle | Symmetry |
| Operating Mode | AHVA, normally black display, transmissiv |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Responding | 30 (Typ.)(Tr+Td) ms |
| Number of | 16.7M, 58% NTSC |
| Backlight type | 6S3P WLED, 15K hours, without driver |
| Screen weight | 75.0g (Max.) |
| Apply to | Pad & Tablet |
| Refresh rate | 60Hz |
| Touch function | Without |
| Signal system | MIPI (4 data lanes), 45 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: -20 ~ 60 °C; Storage: -30 ~ 70 °C |
| AUO 8.0 inch B080EAN03.1 800*1280 188PPI LCD SCREEN | |
