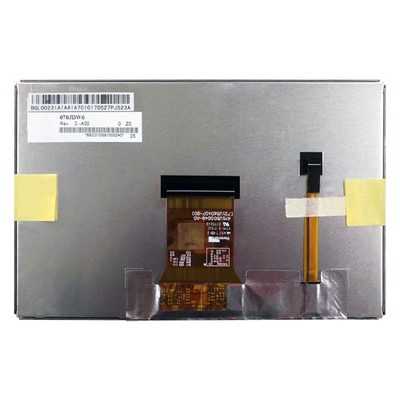

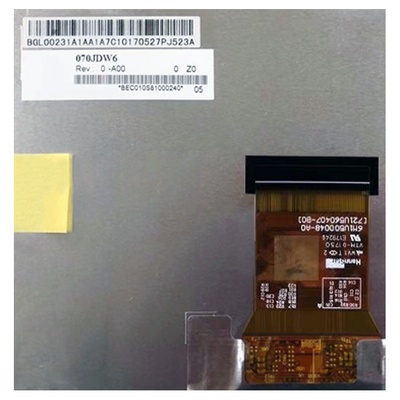

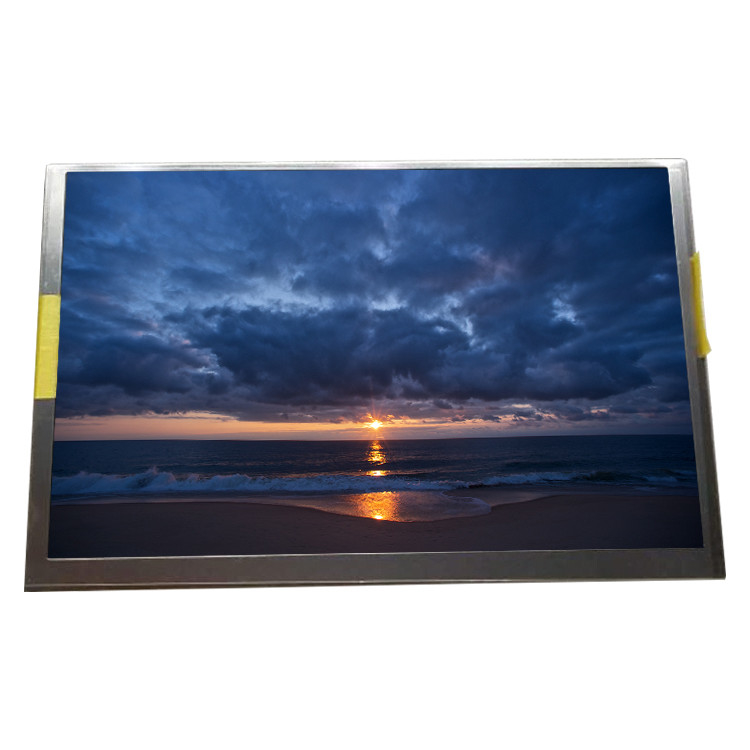

7.0 inch Original Automotive Display LCD display screen For HSD070JDW6-A00
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070JDW6-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD070JDW6-A00 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Bezel Opening: | 154.4(W)×93.44(H) Mm | Outline Size: | 165(W)×104.07(H) ×8.5(D) Mm |
| Brightness: | 1000 Cd/m² (Typ.) | Display Mode: | IPS Pro, Normally Black, Transmissive |
| Weight: | 153±10g | Application: | Automotive Display |
Product Description
7.0 inch Original Automotive Display LCD display screen For HSD070JDW6-A00
HSD070JDW6-A00 Product details :
| HannStar LCD Screen HSD070JDW6-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070JDW6-A00 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.4(W)×93.44(H) mm |
| Outline Size | 165(W)×104.07(H) ×8.5(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | 7S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Weight | 153±10g |
| Application | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI , 60 pins FPC |
| Input Voltage | 3.3/12.4/19/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 7.0 inch Original Automotive Display LCD display screen For HSD070JDW6-A00 | |
HSD070JDW6-A00 Before disassembling the machine, perform the following steps:
Shut down the machine. If you are not sure whether the machine is turned off or hibernating, please turn on the machine and shut it down through the operating system.
Unplug the power cord from the machine and disconnect the power from the machine.
Disconnect all external devices from the machine.
Remove the display bezel.
HSD070JDW6-A00 Shippment & Packing
HSD070JDW6-A00 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
HSD070JDW6-A00 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
HSD070JDW6-A00 FAQ:
Q: Can You declare my order of HSD070JDW6-A00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of HSD070JDW6-A00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of HSD070JDW6-A00 ?
A: Of course!If you make a large order, we will give you a discount.
