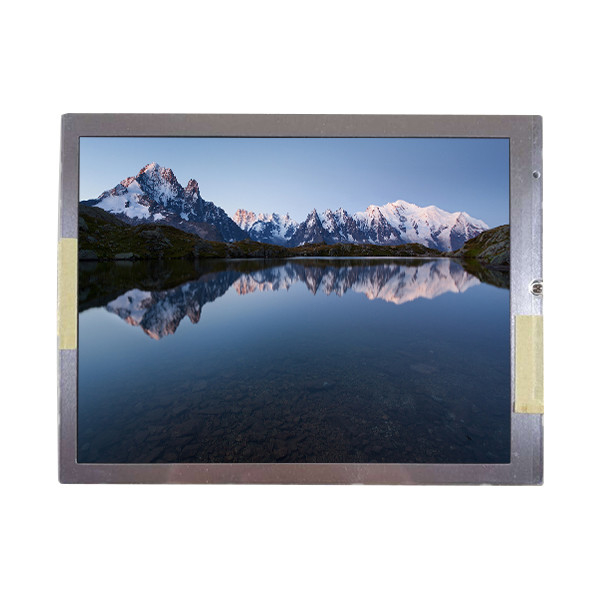

for NEC 5.7 inch TFT LCD Screen Panel Display NL6448BC18-07
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC18-07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC18-07 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 141PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 117.2(W)×88.4(H) Mm | Outline Dim.: | 127.2(H)×100.4(V) ×6.1(D) Mm |
| Luminance: | 300 Cd/m² (Typ.) | Contrast Ratio: | 900:1 (Typ.) (TM) |
| Weight: | 110/120g (Typ./Max.) | Designed For: | Industrial |
Product Description
for NEC 5.7 inch TFT LCD Screen Panel Display NL6448BC18-07
NL6448BC18-07 Product details :
| NEC LCD SCREEN NL6448BC18-07 | |
|---|---|
| manufacturer | NEC |
| Model Name | NL6448BC18-07 |
| screen size | 5.7 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 640(RGB)×480 [VGA] 141PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 115.2(H)×86.4(V) mm |
| physical dimension | 127.2(H)×100.4(V) ×6.1(D) mm |
| Visual size | 117.2(H)×88.4(V) mm |
| surface treatment | Clear, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 900:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Responding time | 3/15 (Typ.)(Tr/Td) |
| Number of color | 262K 50% NTSC |
| Panel weight | 110/120g (Typ./Max.) |
| Designed For | Industrial |
| Refresh rate | 60Hz |
| signal system | CMOS (1 ch, 6-bit) , 40 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| for NEC 5.7 inch TFT LCD Screen Panel Display NL6448BC18-07 | |
NL6448BC18-07 Products and services:
&Our company mainly sales of LCD panel and touch screen,
& We have thousands of models and products.So we are able to meet consumer demand.
& we offer high quality, fast delivery, competitive price for our customers
& Please send your RFQ(request for quoting) to get latest price.
& Warranty of each part.
& Terms of Payment:Escrow,Western Union,TT ,Etc.
NL6448BC18-07 Shippment & Packing
NL6448BC18-07 Shipping terms:
To guarantee the shipping time and safety delivery, we are ONLY able to ship item to the countries listed in Shipping & Packaging.
NL6448BC18-07 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.
- We offer a 30days Money back or replacement (buyer's choice).
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
NL6448BC18-07 FAQ:
Q: If I place order now,when will you ship the goods of NL6448BC18-07 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of NL6448BC18-07 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of NL6448BC18-07 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of NL6448BC18-07 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
