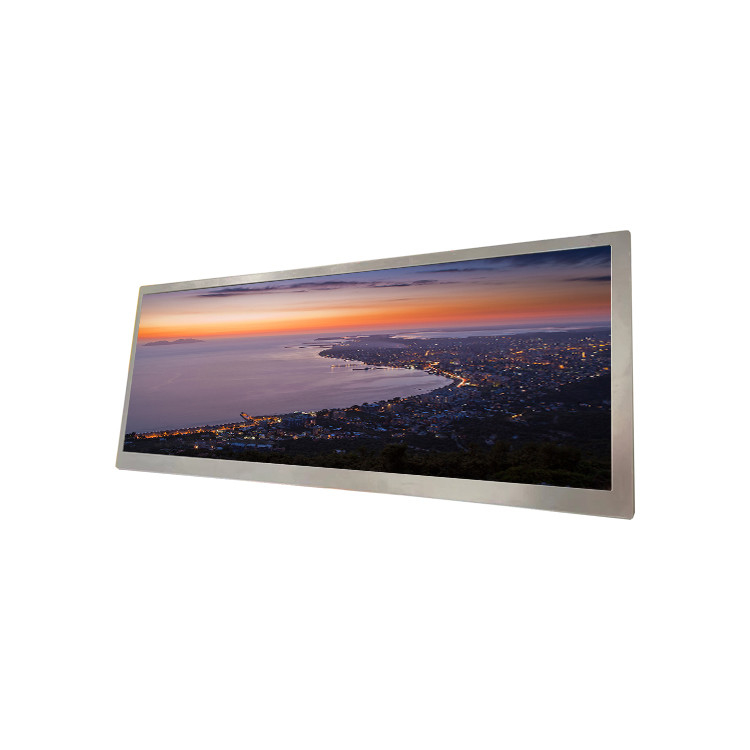

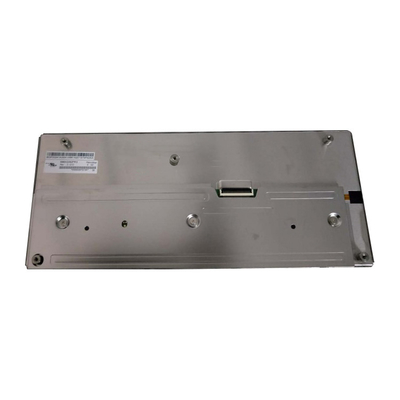

12.3 inch TFT-LCD panel HSD123KPW2-D10 with 1920*720 850 nits LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD123KPW2-D10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD123KPW2-D10 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 167PPI | Active Area: | 292.032(W)×109.512(H) Mm |
| Bezel Opening: | 294.8(W)×112.1(H) Mm | Outline Dim.: | 308.1(H)×130(V) ×15.6(D) Mm |
| Luminance: | 850 Cd/m² (Typ.) | Contrast Ratio: | 1100:1 (Typ.) (TM) |
| Weight: | 515/540g (Typ./Max.) | Designed For: | Automotive Display |
Product Description
12.3 inch TFT-LCD panel HSD123KPW2-D10 with 1920*720 850 nits LCD Screen Display
HSD123KPW2-D10 Product details :
| HannStar LCD Screen HSD123KPW2-D10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD123KPW2-D10 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Bezel Opening | 294.8(W)×112.1(H) mm |
| Outline Dim. | 308.1(H)×130(V) ×15.6(D) mm |
| Treatment | Antiglare |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1100:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14/16 (Max.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | WLED [11S4P] , 30K hours , W/O Driver |
| Weight | 515/540g (Typ./Max.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 12.3 inch TFT-LCD panel HSD123KPW2-D10 with 1920*720 850 nits LCD Screen Display | |
HSD123KPW2-D10 Features:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
HSD123KPW2-D10 NOTE:
Because Our company have many LCD models, we can't uploaded real product pictures for each model, but we will send you the correct products. If you are worried about product problems, you can contact us before placing an order.
HSD123KPW2-D10 Shippment & Packing
HSD123KPW2-D10 About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
HSD123KPW2-D10 Contact Us:
- If you haven't received your goods over 45days(Except Christmas and New year day). Please contact me immediately.
- Resend or a full refund will be issued to you without any excuse
- We care about our valued customers and will do our best to help you. So if you have any questions, please contact me immediately.
- Thank you for your support !
If you need a lot of products, please contact us first.
HSD123KPW2-D10 FAQ:
Q: How long is the warranty of HSD123KPW2-D10 ?
A: 90 days warranty .
Q: Can I pay my goods HSD123KPW2-D10 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of lcd panel HSD123KPW2-D10 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
