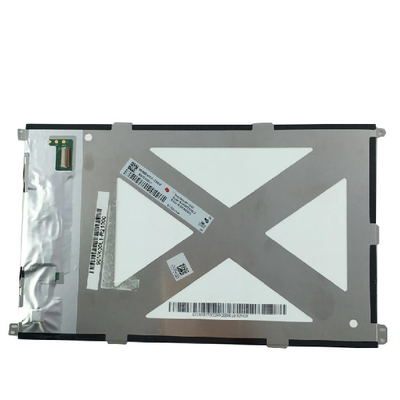

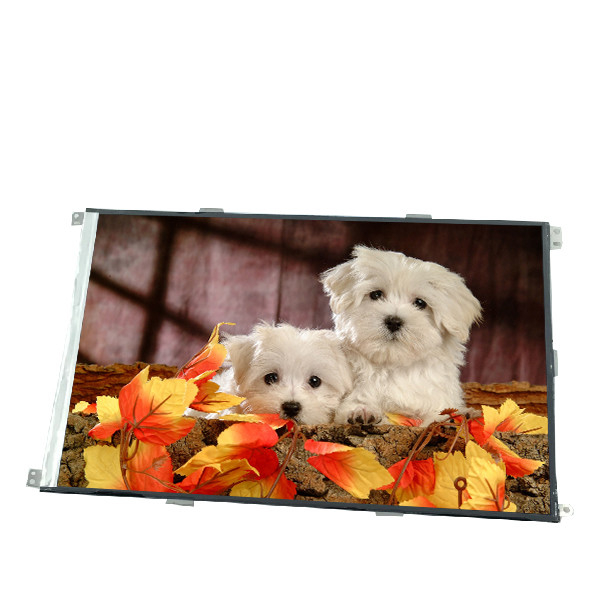

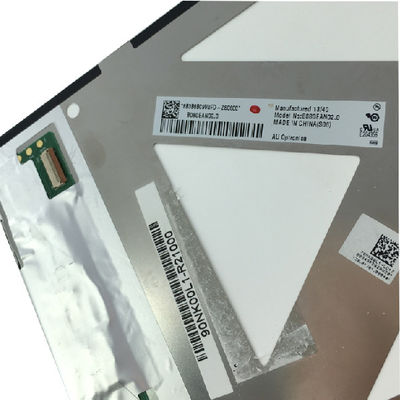

AUO B080EAN02.0 800*1280 118 PP LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B080EAN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B080EAN02.0 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×1280, WXGA 188PPI | Display Size: | 107.64(W)×172.224(H) Mm |
| Best View On: | Symmetry | Brightness: | 350 Cd/m² (Typ. |
| Response Time: | 30 (Typ.)(Tr+Td) | Viewing Angle: | 89/89/89/89 (Typ.)(CR>=10) |
| Weight: | 110g (Max.) | Designed For: | Pad & Tablet |
Product Description
AUO B080EAN02.0 800*1280 118 PP LCD SCREEN
B080EAN02.0 Product details :
| Brand | AUO |
| Model Name | B080EAN02.0 |
| Diagonal Size | 8.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×1280 WXGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 107.64 × 172.224 (H×V) mm |
| Outline Dim. | 114.8(W)×184.7(H) ×4.56(D) mm |
| Brightness | 350 cd/m² (Typ.) |
| Contrast | 900:1 (Typ.) (transmission) |
| View Direction | Symmetry |
| Operating Mode | AHVA, normally black display, transmissiv |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Number of | 16.7M, 58% NTSC |
| Backlight type | WLED [6S3P] , 15K hours , W/O Driver |
| Screen weight | 110g (Max.) |
| Apply to | Pad & Tablet |
| Refresh rate | 60Hz |
| Touch function | Without |
| Interface Type | MIPI (4 data lanes), 31 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working temperature: -20 ~ 60 °C; Storage temperature: -30 ~ 70 °C |
| AUO B080EAN02.0 800*1280 118 PP LCD SCREEN | |
B080EAN02.0 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B080EAN02.0 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
B080EAN02.0 Description:
1.Exactly the same items and pictures.
2.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
3.Each item has been checked and in good condition before shipping.
4. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
B080EAN02.0 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of B080EAN02.0 ?
A: Of course!sample order is welcome !
Q: How to make payment of B080EAN02.0 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of B080EAN02.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
