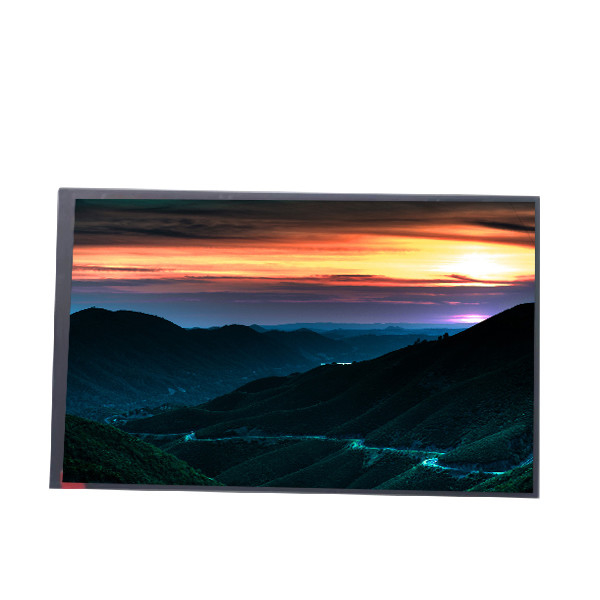

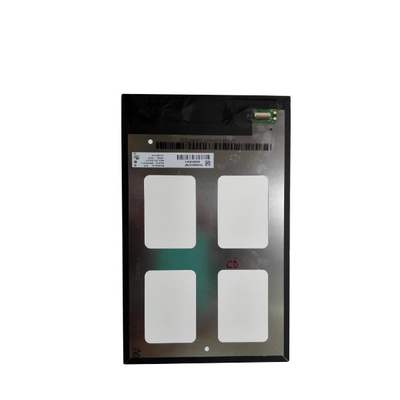

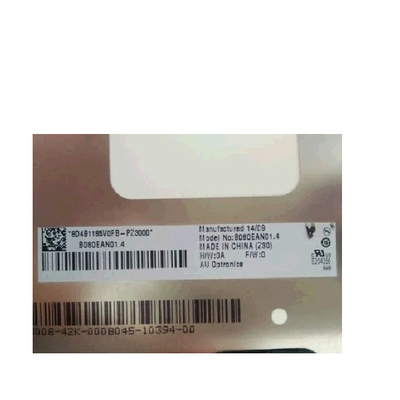

RGB Vertical Stripe B080EAN01.4 800*1280 31 pins LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B080EAN01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B080EAN01.4 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×1280, WXGA 188PPI | Display Size: | 107.64(W)×172.224(H) Mm |
| Best View On: | Symmetry | Brightness: | 400 Cd/m² (Typ. |
| Response Time: | 30 (Typ.)(Tr+Td) | Viewing Angle: | 89/89/89/89 (Typ.)(CR>=10) |
| Weight: | 78.0g (Max.) | Designed For: | Pad & Tablet |
Product Description
RGB Vertical Stripe B080EAN01.4 800*1280 31 pins LCD SCREEN
B080EAN01.4 Product details :
| Brand | AUO |
| Model Name | B080EAN01.4 |
| Diagonal Size | 8.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×1280 WXGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 107.64 × 172.224 (H×V) mm |
| Outline Size | 114.6 × 184.6 × 3.85 (H×V×D) mm |
| Surface | Hard coating, Antireflection |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000: 1 (Typ.) (transmission) |
| Best View on | Symmetry |
| Display Mode | AHVA, Normally Black, Transmissive |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Number of | 16.7M, 58% NTSC |
| Backlight type | WLED , 15K hours , Without Driver |
| Screen weight | 78.0g (Max.) |
| Apply to | Pad & Tablet |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal Interface | 31 pins MIPI (4 data lanes), connector |
| Supply voltage | 1.8/3.3V (Typ.)(VDDP/VDDLI) |
| Maximum | Working temperature: -20 ~ 60 °C; Storage temperature: -30 ~ 70 °C |
| RGB Vertical Stripe B080EAN01.4 800*1280 31 pins LCD SCREEN | |
B080EAN01.4 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B080EAN01.4 Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
B080EAN01.4 Description:
1.Exactly the same items and pictures.
2.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
3.Each item has been checked and in good condition before shipping.
4. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
B080EAN01.4 FAQ:
Q: Can you give me a discount if I need a large quantity of B080EAN01.4 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B080EAN01.4 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods B080EAN01.4 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of B080EAN01.4 ?
A: Of course!sample order is welcome !
B080EAN01.4 Shippment & Packing
