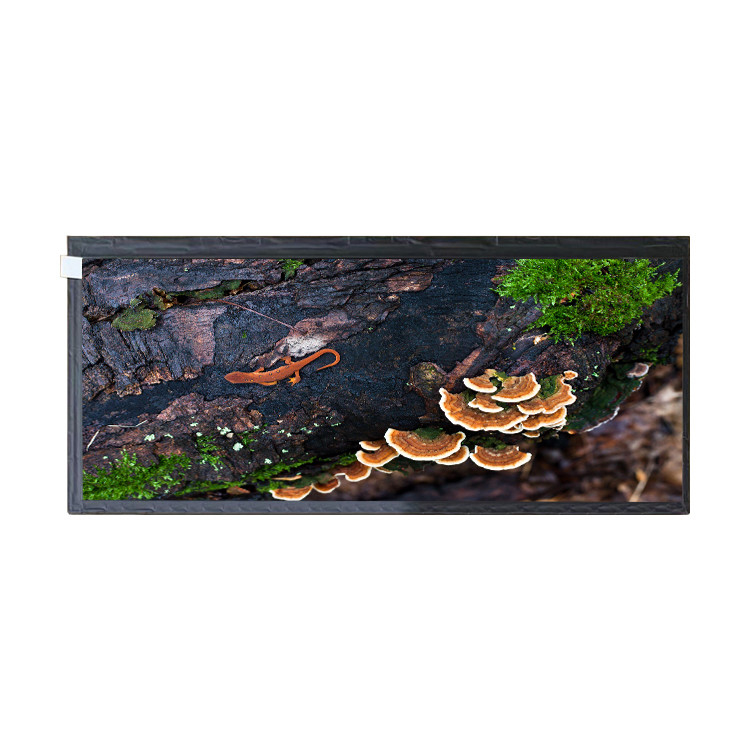

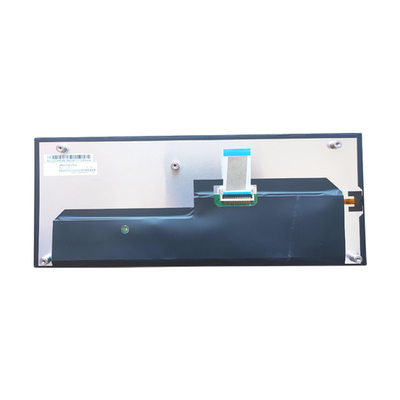

12.3 inches HSD123KPW2-A10 50 pin lcd screen panel display for Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD123KPW2-A10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD123KPW2-A10 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 167PPI | Active Area: | 292.032(W)×109.512(H) Mm |
| Bezel Opening: | 294.8(W)×112.1(H) Mm | Outline Dim.: | 308.1(H)×130(V) ×15.6(D) Mm |
| Luminance: | 850 Cd/m² (Typ.) | Contrast Ratio: | 1100:1 (Typ.) (TM) |
| Weight: | TBD | Designed For: | Automotive Display |
Product Description
12.3 inches HSD123KPW2-A10 50 pin lcd screen panel display for Automotive Display
HSD123KPW2-A10 Product details :
| HannStar LCD Screen HSD123KPW2-A10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD123KPW2-A10 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Bezel Opening | 294.8(W)×112.1(H) mm |
| Outline Dim. | 308.1(H)×130(V) ×15.6(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1100:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 16/14 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 70% NTSC |
| Light Source | WLED [11S4P] , 30K hours , W/O Driver |
| Weight | TBD |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 12.3 inches HSD123KPW2-A10 50 pin lcd screen panel display for Automotive Display | |
HSD123KPW2-A10 Product Description:
1 : Price can be negotiable based on quantity; delivery terms;
2 : Samples: We can offer samples ,but we kindly ask you pay for samples and the freight.
3: Quality guarantee: We will inspect the appearance and test functions of all of our items before shipping, so it is very important for our customers to let professional operators test and install them.
4: Package: All the items will be packed very well to avoid damage.
5: After-service: We provide best after-service, any problem will be solved successfully and smoothly, 100% satisfaction guaranteed.
HSD123KPW2-A10 Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
HSD123KPW2-A10 Shippment & Packing
HSD123KPW2-A10 Description:
1.Exactly the same items and pictures.
2.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
3.Each item has been checked and in good condition before shipping.
4. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
HSD123KPW2-A10 FAQ:
Q: If I place order now,when will you ship the goods of HSD123KPW2-A10 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of HSD123KPW2-A10 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of HSD123KPW2-A10 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of HSD123KPW2-A10 ?
A: Of course!sample order is welcome !
