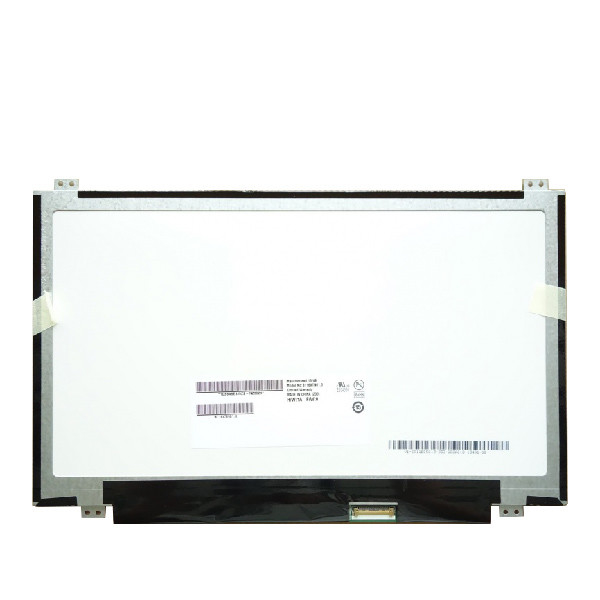

11.6 inch 1366*768 B116XTN01.0 HW1A 30pins LCD SCREEN
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B116XTN01.0 HW1A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model P/N: | B116XTN01.0 HW1A | Diagonal Size: | 11.6" |
---|---|---|---|
Resolution: | 1366(RGB)×768 [WXGA] 135PPI | Active Area: | 256.05 × 144 Mm (H×V) |
Outline(mm): | 278 × 168 × 3.6 Mm (H×V×D) | Luminance: | 220 (Typ.) |
Contrast Ratio: | 500:1 (Typ.) (Transmission) | Response: | 262K , 45% NTSC |
Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Used For: | Laptop Netbook PC |
Product Description
11.6 inch 1366*768B116XTN01.0 HW1A 30pins LCD SCREEN
B116XTN01.0 HW1A Product details :
AUO LCD SCREEN B116XTN01.0 HW1A (LEN4010) | |
Brand | AUO |
Model Name | B116XTN01.0 HW1A |
Diagonal Size | 11.6 inch |
Screen type | a-Si TFT-LCD, LCD module |
Resolution | 1366(RGB)×768 WXGA 135PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 256.125(Horizontal)×144(Vertical) mm |
Outline Dim. | 278(H)×168(V) ×3.6(D) mm |
Treatment | Antiglare, Hard coating (3H) |
Brightness | 220 cd/m² (Typ.) |
Contrast | 500:1 (Typ.) (transmission) |
Operating Mode | TN, Normally White, Transmissive |
Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
Response Time | 3/5 (Typ.)(Tr/Td) ms |
Support Color | 262K 45% NTSC |
Backlight type | WLED, 15K hours, with LED driver |
Apply to | Laptop Netbook PC |
Frame Rate | 60Hz |
Touch function | No touch |
Interface Type | eDP (2 Lanes) , 30 pins Connector |
Supply voltage | 3.3V (Typ.) |
Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
11.6 inch 1366*768B116XTN01.0 HW1A 30pins LCD SCREEN |
B116XTN01.0 HW1A Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B116XTN01.0 HW1A About Shipping:
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
B116XTN01.0 HW1A Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
B116XTN01.0 HW1A Return and feedback:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
B116XTN01.0 HW1A FAQ:
Q: How long will I receive my goods B116XTN01.0 HW1A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of B116XTN01.0 HW1A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of B116XTN01.0 HW1A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of B116XTN01.0 HW1A ?
A: Of course!sample order is welcome !
B116XTN01.0 HW1A Shippment & Packing
