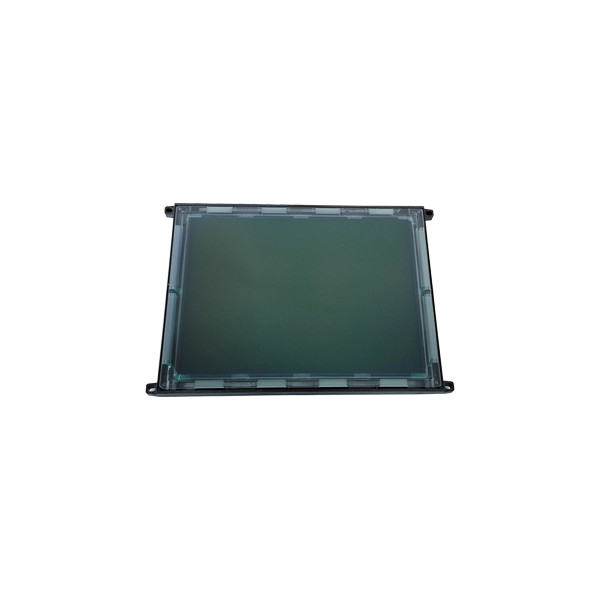

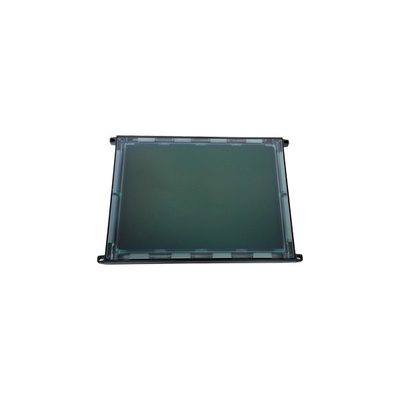

New and original 10.4 inch EL640.480-AM LVDS CC lcd display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Lumineq |
| Model Number: | EL640.480-AM LVDS CC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | EL640.480-AM LVDS CC | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640×480, VGA 77PPI | Active Area: | 211.1(W)×158.3(H) Mm |
| Outline Size: | 266(W)×192(H) Mm | Brightness: | 55 Cd/m² (Typ.) |
| Contrast Ratio: | 40:1 (Typ.) (TM) | Viewing Angle: | 89/89/89/89 (Typ.) |
| Weight: | 525±10g | Application: | Industrial |
Product Description
New and original 10.4 inch EL640.480-AM LVDS CC lcd display screen
EL640.480-AM LVDS CC Product details :
| Lumineq LCD Screen EL640.480-AM LVDS CC | |
|---|---|
| Brand | Lumineq |
| Model P/N | EL640.480-AM LVDS CC |
| Diagonal Size | 10.4" |
| Panel Type | EL, EL |
| Resolution | 640×480, VGA 77PPI |
| Pixel Format | Rectangle |
| Active Area | 211.1(W)×158.3(H) mm |
| Outline Size | 266(W)×192(H) mm |
| Surface | Antiglare |
| Brightness | 55 cd/m² (Typ.) |
| Contrast Ratio | 40:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Best View on | Symmetry |
| Response Time | 1 (Max.) |
| Display Colors | Mono(Yellow) 57% NTSC |
| Lamp Type | self , 100K hours , Without Driver |
| Touch Screen | Without |
| Weight | 525±10g |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 8-bit) , 27 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: -60 ~ 85 °C ; Storage Temp.: -60 ~ 110 °C |
| New and original 10.4 inch EL640.480-AM LVDS CC lcd display screen | |
EL640.480-AM LVDS CC Payment:
1.We accept T/T(bank transfer), western Union, Paypal for now.
2.If you have any problems of payment, please contact us freely.
EL640.480-AM LVDS CC Shippment & Packing
EL640.480-AM LVDS CC Shipment Information:
All the parts will be tested before shipment.
We can ship to you by DHL / FedEX / TNT / UPS / EMS… ,
you can choose the shipping method you prefer.
The buyer is responsible for any tax or duty charged by their country.
EL640.480-AM LVDS CC Refund&Replacement:
1. Please contact us within 7 days if you have any question after you receiving the items.
2.The returned items has to be in its original condition, specific reason for the return,
We will issue a return or replacement for your order after we received the returns.
3.The buyer is responsible for all the shipping cost incurred.
EL640.480-AM LVDS CC FAQ:
Q: How to make payment of EL640.480-AM LVDS CC ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of EL640.480-AM LVDS CC to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of EL640.480-AM LVDS CC via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of EL640.480-AM LVDS CC ?
A: The order will be shipped within 2-3 working days after received your payment.
