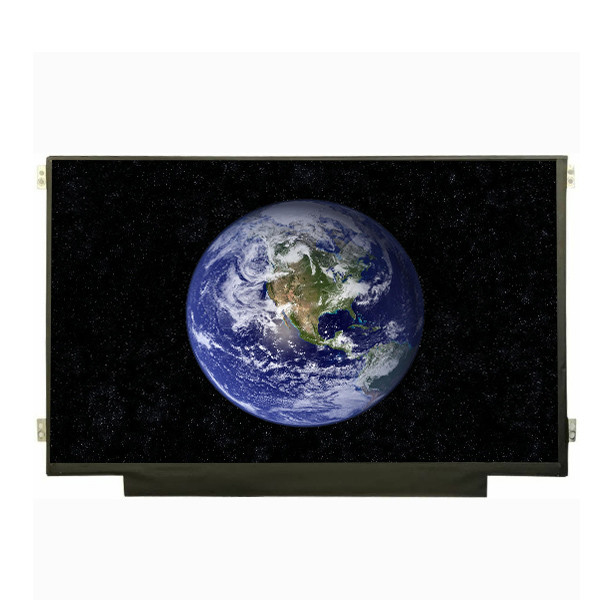

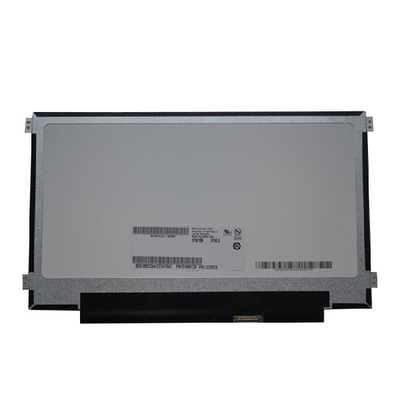

11.6 inch slim eDP 30 pins matte notebook screen 1366*768 B116XTN02.1
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B116XTN02.1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model P/N: | B116XTN02.1 | Diagonal Size: | 11.6" |
---|---|---|---|
Resolution: | 1366(RGB)×768 [WXGA] 135PPI | Active Area: | 256.05 × 144 Mm (H×V) |
Outline(mm): | 278 × 168 × 3.6 Mm (H×V×D) | Luminance: | 220 (Typ.) |
Contrast Ratio: | 400:1 (Typ.) (Transmission) | Response: | 262K , 45% NTSC |
Display Colors: | 97.0g (Max.) | Used For: | Laptop Netbook PC |
Product Description
11.6 inch slim eDP 30 pins matte notebook screen 1366*768 B116XTN02.1
B116XTN02.1 Product details :
AUO LCD SCREEN B116XTN02.1 | |
Panel Brand | AUO |
Panel Model | B116XTN02.1 |
Panel Size | 11.6" |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 1366(RGB)×768 [WXGA] 135PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 256.05 × 144 mm (H×V) |
Outline Size | 278 × 168 × 3.6 mm (H×V×D) |
Surface | Matte, Hard coating (3H) |
Brightness | 220 (Typ.) |
Contrast Ratio | 400 : 1 (Typ.) [Transmission] |
Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Response Time | 8 (Typ.)(Tr+Td) ms |
Display Colors | 262K , 45% NTSC |
Lamp Type | WLED , 10K hours, with LED driver |
Form Style | Slim (PCBA Flat, T≤3.2mm) |
Frequency | 60Hz |
Designed For | Laptop Netbook PC |
Touch Panel | Without |
Signal Interface | eDP (2 Lanes) , eDP1.2 , terminal, 30 pins |
Input Voltage | 3.3V (Typ.) |
Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
11.6 inch slim eDP 30 pins matte notebook screen 1366*768 B116XTN02.1 |
B116XTN02.1 Description:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
5.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
6.Each item has been checked and in good condition before shipping.
7. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
B116XTN02.1 About Shipping:
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
B116XTN02.1 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
B116XTN02.1 Return and feedback:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
B116XTN02.1 FAQ:
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of B116XTN02.1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for B116XTN02.1 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the B116XTN02.1 I receive can't work ?
A: B116XTN02.1 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
B116XTN02.1 Shippment & Packing
