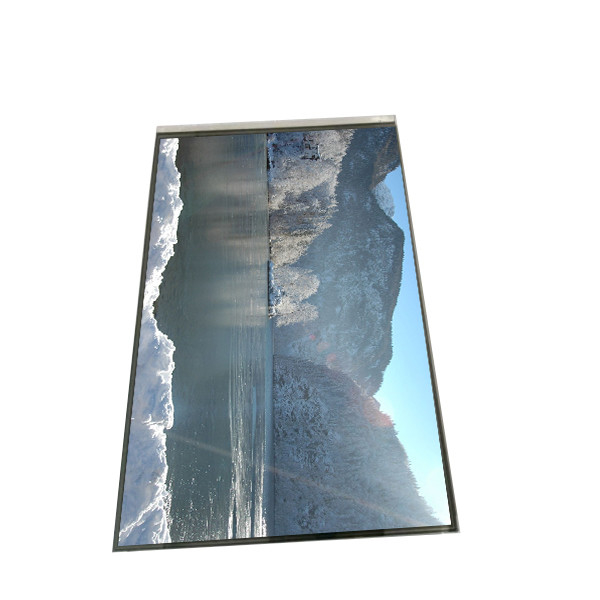

AUO 8.0 INCH B080EAB02.X 800*1280 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B080EAB02.X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD121IXN1-A00 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×1280 [WXGA] 188PPI | Active Area: | 107.64 × 172.224 Mm (H×V) |
| Outline(mm): | 119.04 × 204.16 × 3.32 Mm (H×V×D) | Luminance: | 350 Cd/m² (Typ.) |
| Contrast Ratio: | 900:1 (Typ.) (Transmission) | Response: | 25 (Typ.)(Tr+Td) Ms |
| Mass: | 160g (Max.) | Used For: | Pad & Tablet |
Product Description
AUO 8.0 INCH B080EAB02.X 800*1280 LCD Screen
B080EAB02.X Product details :
| AUO LCD Screen B080EAB02.X | |
| Panel Brand | AUO |
| Panel Model | B080EAB02.X |
| Diagonal Size | 8.0inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×1280 [WXGA] 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 107.64 × 172.224 mm (H×V) |
| Outline Dim. | 119.04 × 204.16 × 3.32 mm (H×V×D) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Number of colors | 16.7M , 58% NTSC |
| Light Source | WLED , 15K hours, no driver |
| Weight | 160g (Max.) |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, I²C |
| Interface Type | MIPI (4 data lanes) , terminal, 39 pins |
| Supply voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| AUO 8.0 INCH B080EAB02.X 800*1280 LCD Screen | |
B080EAB02.X Description:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
5.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
6.Each item has been checked and in good condition before shipping.
7. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
B080EAB02.X About Shipping:
Wwe will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
B080EAB02.X Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
B080EAB02.X FAQ:
Q: Can I pay my goods B080EAB02.X by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of B080EAB02.X ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for B080EAB02.X ?
A: Of course!sample order is welcome !
Q: How to make payment for B080EAB02.X ?
A: We accept T/T , Paypal , western union .
B080EAB02.X Shippment & Packing
