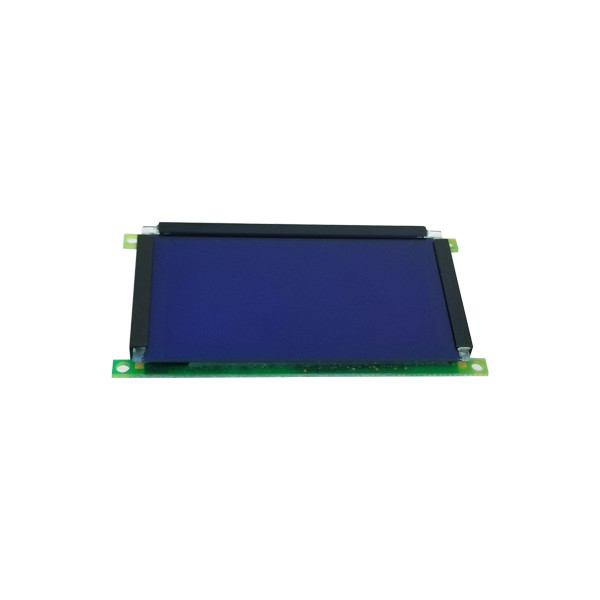

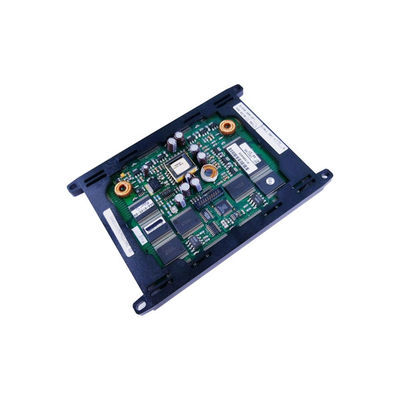

EL640.480-AF1 AG 640*480 lcd display screen 6.4 inch lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Lumineq |
| Model Number: | EL640.480-AF1 AG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | EL640.480-AF1 AG | Diagonal Size: | 6.4" |
|---|---|---|---|
| Resolution: | 640×480, VGA 125PPI | Active Area: | 129.3(W)×97(H) Mm |
| Outline(mm): | 182.3(W)×128.6(H) Mm | Surface: | Antiglare |
| Brightness: | 65 Cd/m² (Typ.) | Contrast Ratio: | 50:1 (Typ.) (TM) |
| Panel Weight: | 300g | Application: | Industrial |
Product Description
EL640.480-AF1 AG 640*480 lcd display screen 6.4 inch lcd panel
EL640.480-AF1 AG Product details :
| Lumineq LCD Screen EL640.480-AF1 AG | |
|---|---|
| Brand | Lumineq |
| Model P/N | EL640.480-AF1 AG |
| Diagonal Size | 6.4" |
| Panel Type | EL, EL |
| Resolution | 640×480, VGA 125PPI |
| Pixel Format | Rectangle |
| Active Area | 129.3(W)×97(H) mm |
| Outline (mm) | 182.3×128.6 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 65 cd/m² (Typ.) |
| Contrast Ratio | 50 : 1 (Typ.) (TM) |
| Color Depth | Monochrome |
| Backlight | self |
| Mass | 300g |
| Used for | Industrial |
| Refresh Rate | 120Hz |
| Touchscreen | Without |
| Signal Type | Parallel Data (1ch, 4-bit) , Connector 20 pins |
| Voltage Supply | 5/12V (Typ.)(VL/VH) |
| Max. Ratings | Storage Temp.: -40 ~ 75 °C Operating Temp.: -5 ~ 55 °C |
| EL640.480-AF1 AG 640*480 lcd display screen 6.4 inch lcd panel | |
EL640.480-AF1 AG payment :
1.We will send out the order within 1-3 days after confirming the payment.
2.You can choose DHL/TNT for fast shipping
3.We 100% tested one by one before shipping .If the product is faulty during shipping, please inform us immediately after your received it.
4.Our products have good apperance and function.You can place your order with 100% assurance.I promise all of my products work!!!
EL640.480-AF1 AG Shippment & Packing
EL640.480-AF1 AG Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
EL640.480-AF1 AG Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
EL640.480-AF1 AG FAQ:
Q: If I place order now,when will you ship the goods of EL640.480-AF1 AG ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of EL640.480-AF1 AG via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of EL640.480-AF1 AG to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
