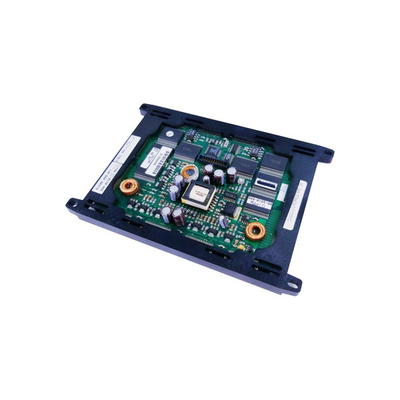

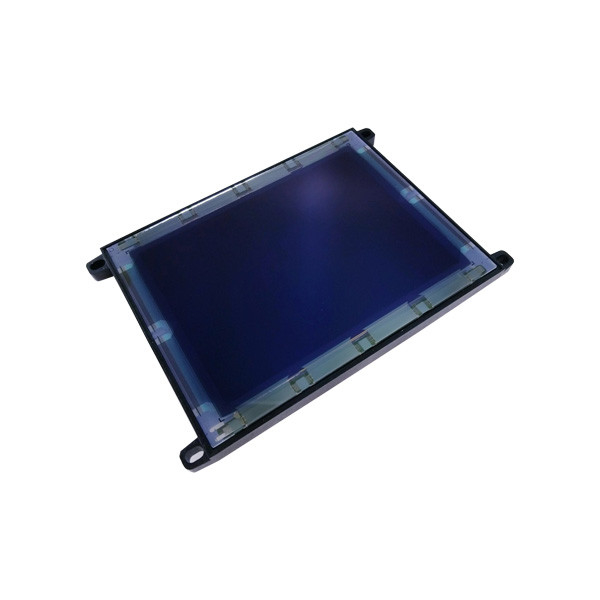

Lumineq EL640.480-AF LVDS 640*480 lcd display screen 6.4 inch lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Lumineq |
| Model Number: | EL640.480-AF LVDS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | EL640.480-AF LVDS | Diagonal Size: | 6.4" |
|---|---|---|---|
| Resolution: | 640×480, VGA 125PPI | Active Area: | 129.3(W)×97(H) Mm |
| Outline(mm): | 182.3×128.6 (H×V×D) | Luminance: | 60 Cd/m² (Typ.) |
| Contrast Ratio: | 50 : 1 (Typ.) (TM) | Color Depth: | Mono(Yellow) |
| Mass: | 270g | Used For: | Industrial |
Product Description
Lumineq EL640.480-AF LVDS 640*480 lcd display screen 6.4 inch lcd panel
EL640.480-AF LVDS Product details :
| Lumineq LCD Screen EL640.480-AF LVDS | |
|---|---|
| Brand | Lumineq |
| Model P/N | EL640.480-AF LVDS |
| Diagonal Size | 6.4" |
| Panel Type | EL, EL |
| Resolution | 640×480, VGA 125PPI |
| Pixel Format | Rectangle |
| Active Area | 129.3(W)×97(H) mm |
| Outline (mm) | 182.3×128.6 (H×V×D) |
| Luminance | 60 cd/m² (Typ.) |
| Contrast Ratio | 50 : 1 (Typ.) (TM) |
| Color Depth | Mono(Yellow) |
| Backlight | self , 50K hours |
| Mass | 270g |
| Used for | Industrial |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , Connector 28 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -60 ~ 110 °C Operating Temp.: -60 ~ 85 °C |
| Lumineq EL640.480-AF LVDS 640*480 lcd display screen 6.4 inch lcd panel | |
EL640.480-AF LVDS Product quality assurance:
our product is original new , before sending the goods are tested by the engineers , ALL is OK,then they will be sended to the buyer,so you can rest assured to buy in my store.
EL640.480-AF LVDS Shippment & Packing
EL640.480-AF LVDS Logistics:
1.Worldwide shipping.
2.Orders will be delivered in 1-3 working days after receiving ful1 payment.
3.For urgently order,please choose EMS express(include DHL,FEDEX TNT,UPS)
4. We are not responsible for any customs duties and additional taxes.
EL640.480-AF LVDS Return& Replace:
1.If the products you received are Non-artificial damaged, please notify us in 3 days.
2.Products should be returned with original package and be in good condition if possible.
3.Customers need to bear the freight of returned product.
EL640.480-AF LVDS Service hours:
If you have any question, please contact us I will sincerely for your service, our service time for the Beijing time:8: 00-12: 00; 1: 30-6:00;But we have 24 hours will have customer service for you to solve the problem.
EL640.480-AF LVDS FAQ:
Q: Do you accept sample orders of EL640.480-AF LVDS ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods EL640.480-AF LVDS ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of EL640.480-AF LVDS via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
