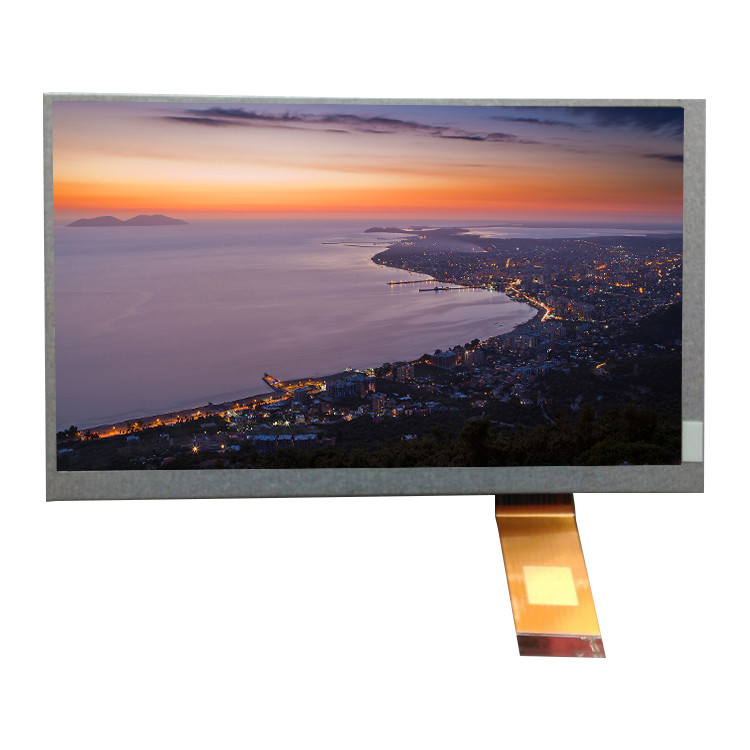

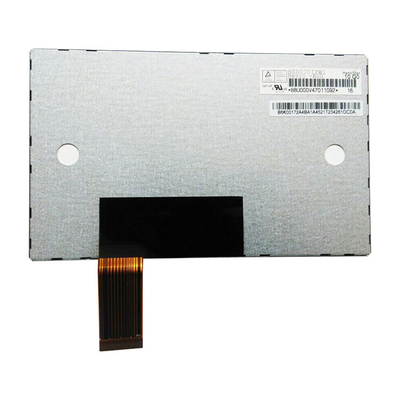

7.0 inch TFT Hannstar HSD070IFW1-A00 LCD Display Screen Panel for Automotive Display
Product Details:
Place of Origin: | China |
Brand Name: | HannStar |
Model Number: | HSD070IFW1-A00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model P/N: | HSD070IFW1-A00 | Diagonal Size: | 7.0" |
---|---|---|---|
Resolution: | 1024(RGB)×600, WSVGA 170PPI | Active Area: | 153.6(W)×86.64(H) Mm |
Bezel Opening: | 156.0(W)×90.1(H) Mm | Outline Dim.: | 164.9(W)×100(H) Mm |
Luminance: | 600 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
Weight: | 146/156g (Typ./Max.) | Designed For: | Automotive Display |
Product Description
7.0 inch TFT Hannstar HSD070IFW1-A00 LCD Display Screen Panel for Automotive Display
HSD070IFW1-A00 Product details :
HannStar LCD Screen HSD070IFW1-A00 | |
---|---|
Brand | HannStar |
Model P/N | HSD070IFW1-A00 |
Diagonal Size | 7.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1024(RGB)×600, WSVGA 170PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 153.6(W)×86.64(H) mm |
Bezel Opening | 156.0(W)×90.1(H) mm |
Outline Dim. | 164.9(W)×100(H) mm |
Treatment | Antiglare |
Luminance | 600 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 4/12 (Typ.)(Tr/Td) |
Viewing Angle | 80/80/80/70 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K/16.7M 50% NTSC |
Light Source | WLED , 10K hours , W/O Driver |
Weight | 146/156g (Typ./Max.) |
Designed For | |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6/8-bit) 40 pins FPC |
Power Supply | 3.3/9.5/18/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
7.0 inch TFT Hannstar HSD070IFW1-A00 LCD Display Screen Panel for Automotive Display |
HSD070IFW1-A00 Warning:
*Installation guide not included, We are not responsible for any damage caused by installation of this accessory, please be sure you know how to install it before bid,Thank you for your kind understanding!
*We just can guarantee the one you received that will be compatible with your tablet,
*Please DO NOT buy if you do not accept an A+ grade compatible touch screen digitizer with different flex cable numbers as our title/description/photo states is out of supply in the market, thank you!
1.Each screen is tested before shipping & 100% working;Repair/Replacing old, broken, cracked,damaged faulty screen.
2.After receiving the goods, do not tear the film, do not stick the glue on the back, test the machine first, remove the old screen, insert the new screen, and check whether the sensitivity is normal. Please be sure to try the machine first. Make sure the quality is ok. Install again.it is easy to burn the motherboard and screen, we are not responsible.
3.before connection test the power must be disconnected ,Otherwise it will burn the motherboard and screen easily.If it doesn't work, we won't be responsible.
HSD070IFW1-A00 Shippment & Packing
HSD070IFW1-A00 Shipping:
1.We will test them strictly before shipping.
2.We will ship it within 3 working days after we get the order.
3.The delivery time normally will be 7 to 50 days, which will be different for different countries. You can choose ALI Standard Shipping,It is faster than others.
4.* United States / United Kingdom / Australia may take 7-30 working days.
5.* Canada may take 7-35 working days.
6.* France / Spain / Germany may take 7-30 working days.
7.* Eastern Europe may take 16-30 working days.
8.* Italy / Brazil / South America may take 30-50 working days.
9.* Shipped by DHL Express: 7-12 working days (you need to pay extra fee).
HSD070IFW1-A00 Guarantee:
1.All the items will be tested good before shipping.
2.Warranty period: 3 months
HSD070IFW1-A00 FAQ:
Q: If I order HSD070IFW1-A00 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for HSD070IFW1-A00 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of HSD070IFW1-A00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of HSD070IFW1-A00 ?
A: 90 days warranty .
