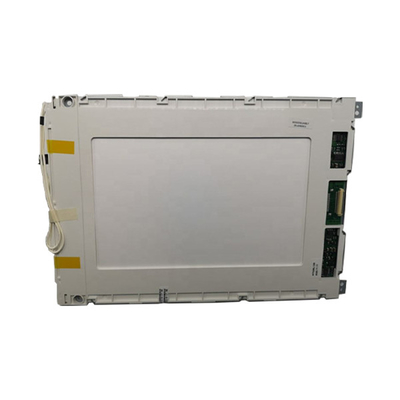

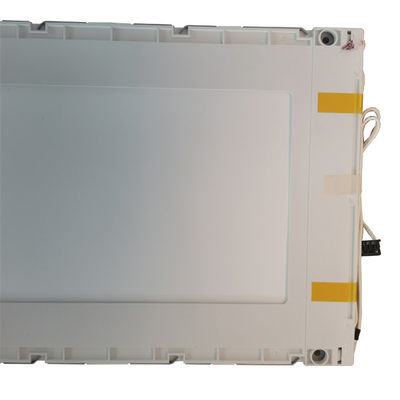

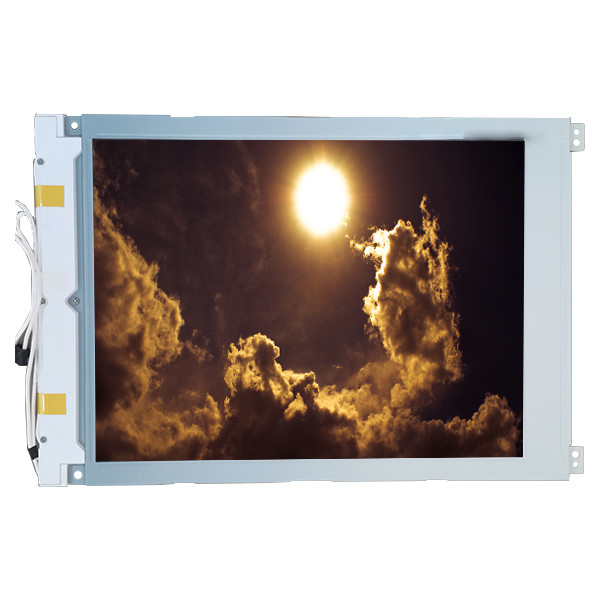

LTBSHT702G23CKS 9.4inch lcd Screen Display For industrial machine
Product Details:
| Place of Origin: | China |
| Brand Name: | NAN YA |
| Model Number: | LTBSHT702G23CKS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LTBSHT702G23CKS | Diagonal Size: | 9.2" |
|---|---|---|---|
| Resolution: | 640×480, VGA 84PPI | Active Area: | 191.97(W)×143.97(H) Mm |
| Bezel Opening: | 197.0(W)×147.6(H) Mm | Outline Dim.: | 260.5(H)×174(V) ×8(D) Mm |
| Weight: | 350g (Typ.) | Designed For: | Industrial |
Product Description
LTBSHT702G23CKS 9.4 inch lcd Screen Display For industrial machine
LTBSHT702G23CKS Product details :
| NAN YA LCD Screen LTBSHT702G23CKS | |
|---|---|
| Panel Brand | NAN YA |
| Panel Model | LTBSHT702G23CKS |
| Panel Size | 9.2" |
| Panel Type | STN-LCD, LCM |
| Resolution | 640×480, VGA, 84PPI |
| Pixel Format | Rectangle |
| Display Area | 191.97(W)×143.97(H) mm |
| Bezel Opening | 197.0(W)×147.6(H) mm |
| Outline Size | 260.5(W)×174(H) ×8(D) mm |
| Brightness | 90 cd/m² (Typ.) |
| Contrast Ratio | 18:1 (Typ.) (TM) |
| Viewing Angle | 25/25/20/30 |
| Display Mode | STN, Normally Black, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 300/200 (Typ.)(Tr/Td) |
| Display Colors | Monochrome |
| Lamp Type | 1 pcs CCFL , 30K hours , Without Driver |
| Frequency | 70Hz |
| Touch Screen | Without |
| Panel Weight | 350g (Typ.) |
| Application | Industrial |
| Signal Interface | Parallel Data (2ch, 4-bit) , 15 pins Connector |
| Input Voltage | 5.0/23.7V (Typ.)(VDD/VEE) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| LTBSHT702G23CKS 9.4inch lcd Screen Display For industrial machine | |
LTBSHT702G23CKS NOTE :
Because the screen is fragile, please must inspect the goods first, in the signing, if there is damage, you need to associate the responsible person, please be sure to check the goods in the signature, thank you!!!
LTBSHT702G23CKS Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
LTBSHT702G23CKS Shippment & Packing
LTBSHT702G23CKS Shipping:
1, Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
5, LCD will be sent by EMS/DHL/UPS/ according to the place or customer choice.
EMS takes around 10-15 business days to arrive.
DHL/UPS take around 3-5 business days to arrive.
Russian customer attention: We can only send by EMS to Russia, EMS usually takes more days to arrive, so your patience is really appreciated.
LTBSHT702G23CKS Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
LTBSHT702G23CKS FAQ:
Q: If I place order now,when will you ship the goods of LTBSHT702G23CKS ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of LTBSHT702G23CKS ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of LTBSHT702G23CKS via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LTBSHT702G23CKS ?
A: Of course!If you make a large order, we will give you a discount.
