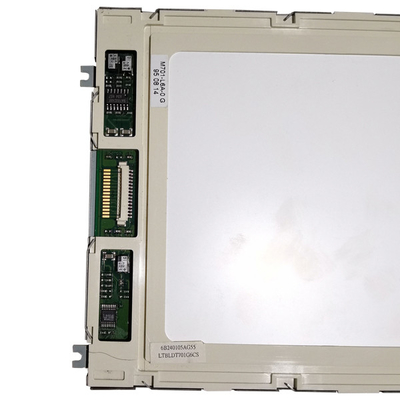

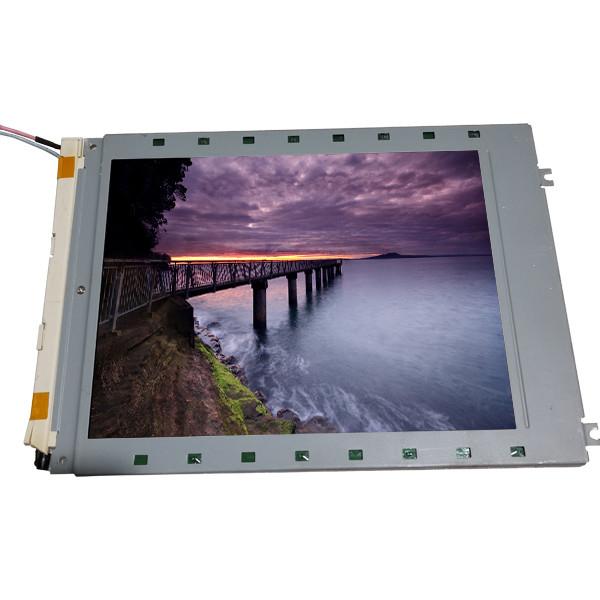

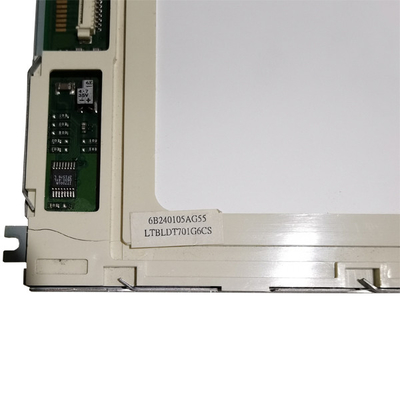

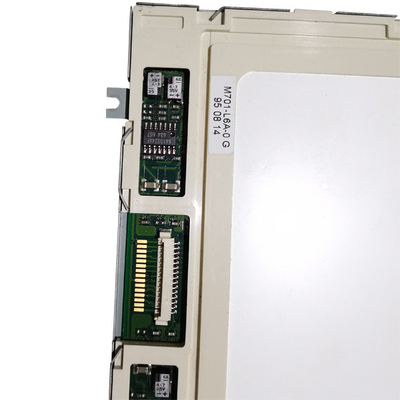

NAN YA Lcd display LTBLDT701G6CS 7.2 inch 640*480 inch lcd screen for industrial machine in stock
Product Details:
| Place of Origin: | China |
| Brand Name: | NAN YA |
| Model Number: | LTBLDT701G6CS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LTBLDT701G6CS | Diagonal Size: | 7.2" |
|---|---|---|---|
| Resolution: | 640×480, VGA 110PPI | Active Area: | 147.18(W)×110.38(H) Mm |
| Outline Size: | 205.5(W)×141(H) ×7(D) Mm | Brightness: | 85 Cd/m² (Typ.) |
| Weight: | 310g (Typ.) | Application: | Industrial |
Product Description
NAN YA Lcd display LTBLDT701G6CS 7.2 inch 640*480 inch lcd screen for industrial machine in stock
LTBLDT701G6CS Product details :
| NAN YA LCD Screen LTBLDT701G6CS | |
|---|---|
| Brand | NAN YA |
| Model | LTBLDT701G6CS |
| Diagonal Size | 7.2 inch |
| Type | FSTN-LCD, LCM |
| Pixel Format | 640×480 [VGA] 110PPI |
| Configuration | Rectangle |
| Active Area | 147.18(H)×110.38(V) mm |
| Outline Dim. | 205.5(H)×141(V) ×7(D) mm |
| Luminance | 85 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Response Time | 234/110 (Typ.)(Tr/Td) |
| Operating Mode | FSTN, Black/White (Negative), Transmissive |
| Support Color | Monochrome |
| Light Source | CCFL [1 pcs] , 20K hours , W/O Driver |
| Weight | 310g (Typ.) |
| Designed For | Industrial |
| Interface Type | Parallel Data (2ch, 4-bit) , 15 pins Connector |
| Power Supply | (5.0/22.3V)(Typ.)(VDD/VEE) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C |
| NAN YA Lcd display LTBLDT701G6CS 7.2 inch 640*480 inch lcd screen for industrial machine in stock | |
LTBLDT701G6CS Notice:
1.Before installing the LCD screen, please turn off the power first, unplug the screen cable, and turn on the power after all the installation work is completed.
2.All panels will be sent out after strict testing to ensure that you can install them directly after receiving them.all panelsA+ grade no dead pixels
3.Please check the specific information of the Panel, we will ensure that the issued panel is fully compatible, if you are not sure about your specific panel, please send us the panel picture on your current machine to confirm, we will reply you as soon as possible.
4.If you are a professional and know the panel model you need, you can directly place an order to buy.
5.All panel will be packed by antistatic bag and box.
LTBLDT701G6CS Shippment & Packing
LTBLDT701G6CS About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
LTBLDT701G6CS Warm tip:
if you are Indian ,Russian ,Brazil or Belarus customers ,
suggest you chose EMS ,or china post air mail,or HK china post air mail,it's better for helping you to clear customs.
Before your payment we will check the shipping cost with you,DHL,EMS,UPS and Fedex if can send your position ,you can choose one you need.
LTBLDT701G6CS FAQ:
Q: Do you accept sample orders of LTBLDT701G6CS ?
A: Of course!sample order is welcome !
Q: Can You declare my order of LTBLDT701G6CS to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of LTBLDT701G6CS ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LTBLDT701G6CS ?
A: Of course!If you make a large order, we will give you a discount.
