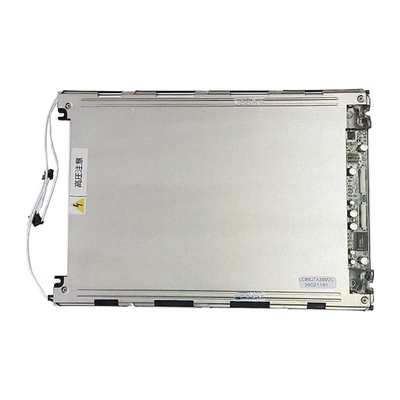

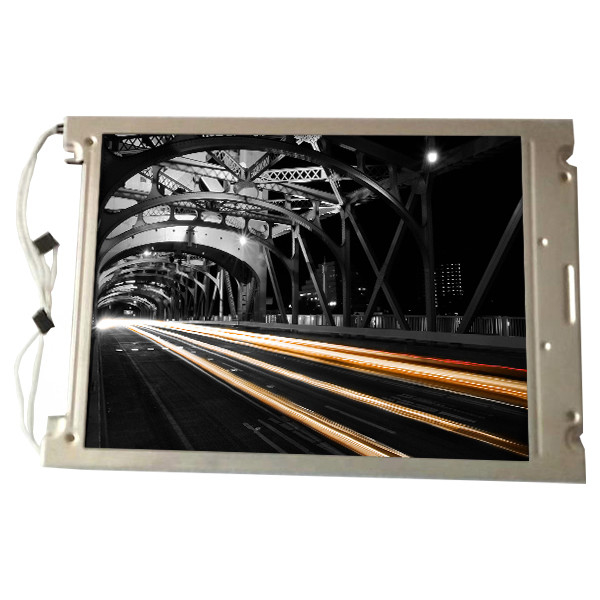

NAN YA 10.4 inch 640*480 LCBSJTA39M2 LCD screen display new original
Product Details:
| Place of Origin: | China |
| Brand Name: | NAN YA |
| Model Number: | LCBSJTA39M2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LCBSJTA39M2 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 216.0(W)×161.6(H) Mm | Outline(mm): | 264(W)×183(H)×12(D) |
| Mass: | 495g (Typ.) | Used For: | Industrial |
Product Description
NAN YA 10.4 inch 640*480 LCBSJTA39M2 LCD screen display new original
LCBSJTA39M2 Product details :
| NAN YA LCD Screen LCBSJTA39M2 | |
|---|---|
| Manufacturer | NAN YA |
| Model Name | LCBSJTA39M2 |
| Screen Size | 10.4 inch |
| Screen Type | LCM , CSTN-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 76PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 211.2 × 158.4 (H×V) |
| Outline(mm) | 264 × 183 × 12 (H×V×D) |
| Bezel Area(mm) | 216.0 × 161.6 (H×V) |
| Luminance | 230 cd/m² (Typ.) |
| Contrast Ratio | 30 : 1 (Typ.) (TM) |
| Response | 230/80 (Typ.)(Tr/Td) ms |
| Work Mode | STN, Normally Black, Transmissive |
| Color Depth | Color 22% NTSC |
| Backlight | 2 pcs CCFL , 10K hours , Optional |
| Mass | 495g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 70Hz |
| Touchscreen | Without |
| Signal Type | Parallel Data (2ch, 8-bit) , 29 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 50 °C |
| NAN YA 10.4 inch 640*480 LCBSJTA39M2 LCD screen display new original | |
LCBSJTA39M2 Terms of Service:
Thank you for reviewing the important information, I will tell you the important steps:
The screen of the machine is inside the device, you need to disassemble the machine, and then send me the screen picture (this is very important, please pay attention),And tell me the length, width, and thickness of the screen.
LCBSJTA39M2 Purchase instructions:
Ⅰ.All products are guaranteed to be genuine
Ⅱ.All products are tested and delivered
Ⅲ.Different models of the same link can be used in general
Ⅳ If you need help, please leave a message to the owner
LCBSJTA39M2 Shippment & Packing
LCBSJTA39M2 About the transportation:
Our Courier has ALI Standard Shipping, time not sure, about 15 to 30 days. (the time is not very urgent use, transport time is a little long, transportation cost cheaper)
DHL about 3 to 7 days or so, UPS/federal IP is about 7 to 10 days. This is just a reference, the specific time according to the express company limited. (shipping time is very short, but transport costs is high, the urgent need to use)
LCBSJTA39M2 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LCBSJTA39M2 FAQ:
Q: If I place order now,when will you ship the goods of LCBSJTA39M2 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of LCBSJTA39M2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods LCBSJTA39M2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of LCBSJTA39M2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
