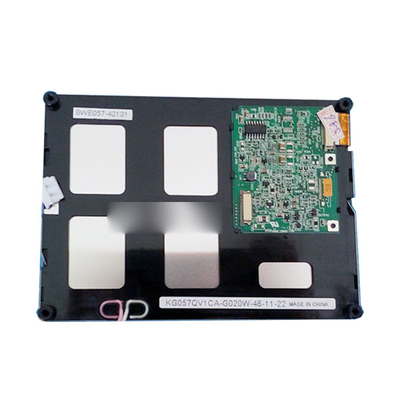

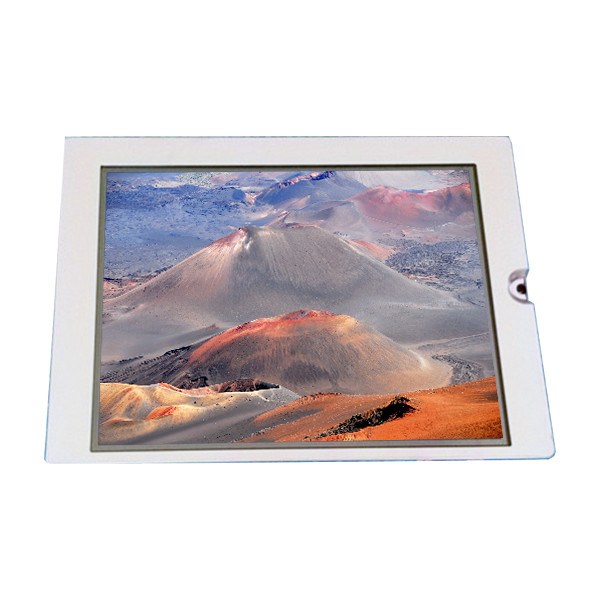

KG057QV1CA-G020W 5.7 inch 320*240 LCD display New Original
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KG057QV1CA-G020W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | KG057QV1CA-G020W | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320×240, QVGA 70PPI | Active Area: | 115.18(W)×86.38(H) Mm |
| Bezel Opening: | 119.4(W)×90.6(H) Mm | Outline Size: | 144(W)×104.8(H) ×13.2(D) Mm |
| Weight: | 175g | Application: | Industrial |
Product Description
KG057QV1CA-G020W 5.7 inch 320*240 LCD display New Original
KG057QV1CA-G020W Product details :
| kyocera LCD SCREEN KG057QV1CA-G020W | |
|---|---|
| Panel Brand | kyocera |
| Panel Model | KG057QV1CA-G020W |
| Panel Size | 5.7 inches |
| Panel Type | STN-LCD , Liquid Crystal Module |
| Resolution | 320×240, QVGA, 70PPI |
| Pixel Format | rectangle |
| Display Area | 115.18(W)×86.38(H) mm |
| Bezel Opening | 119.4(W)×90.6(H) mm |
| Outline Size | 144(W)×104.8(H) ×13.2(D) mm |
| Surface | Specular (Haze 0%) |
| Brightness | 260 cd/m² (Typ.) |
| Contrast Ratio | 4:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.) (CR≥2) |
| Display Mode | STN, Blue Mode - Negative, Transmissive |
| Response Time | 380/120 (Typ.)(Tr/Td) ms |
| Display Colors | monochrome |
| Lamp Type | 1 pcs CCFL , 58K hours , Optional |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 175g (Typ.) |
| Application | Industrial |
| Signal Interface | Parallel Data (4-bit) , 20 pins , terminal |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| KG057QV1CA-G020W 5.7 inch 320*240 LCD display New Original | |
