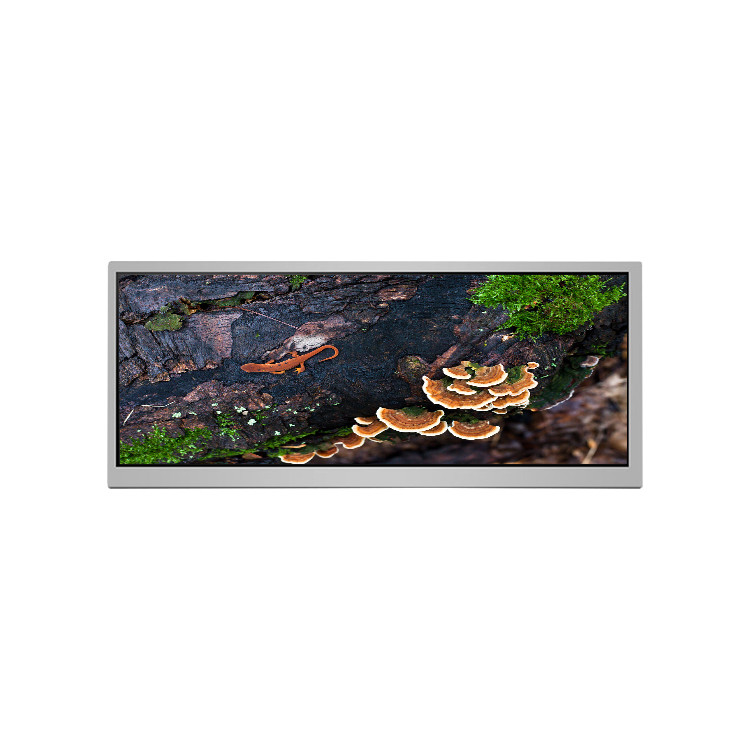

12.3 Inch IPS 1920*720 HSD123JPW2-C01 Automotive Display LCD Screen For Car Navigation
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD123JPW2-C01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HSD123JPW2-C01 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×720 167PPI | Active Area: | 292.032(W)×109.512(H) Mm |
| Bezel Opening: | 294.8(W)×112.1(H) Mm | Outline Dim.: | 308.1(H)×130(V) ×15.6(D) Mm |
| Weight: | 518/543g (Typ./Max.) | Designed For: | Automotive Display |
Product Description

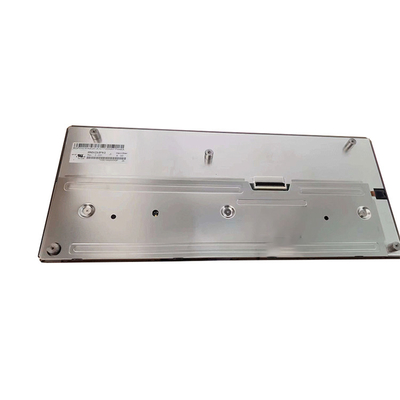

12.3 Inch IPS 1920*720 HSD123JPW2-C01 Automotive Display LCD Screen For Car Navigation
HSD123JPW2-C01 Product details :
| HannStar LCD Screen HSD123JPW2-C01 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD123JPW2-C01 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Bezel Opening | 294.8(W)×112.1(H) mm |
| Outline (mm) | 308.1×130×15.6 (H×V×D) |
| Treatment | Glare (Haze 0%), Antireflection |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 14/16 (Max.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Color Depth | 16.7M 100% sRGB |
| Backlight | 11S4P WLED , 30K hours , No Driver |
| Mass | 518/543g (Typ./Max.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , Connector 50 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 12.3 Inch IPS 1920*720 HSD123JPW2-C01 Automotive Display LCD Screen For Car Navigation | |
HSD123JPW2-C01 NOTE:
1.Please check and confirm your LCD screen model, screen size and notebook model. If you are not sure whether it is compatible, please send us the specific model and photo of your original screen;
2.We will send the matching panel compatible model, which may be different from the original model!
3.Please make sure your shipping address is the right one.
4.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
HSD123JPW2-C01 Features:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
HSD123JPW2-C01 Shippment & Packing
HSD123JPW2-C01 Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
HSD123JPW2-C01 Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,we can also ship by air or sea transportation through our cargo agent.
HSD123JPW2-C01 FAQ:
Q: Can You declare my order of HSD123JPW2-C01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of HSD123JPW2-C01 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of HSD123JPW2-C01 ?
A: Of course!If you make a large order, we will give you a discount.
