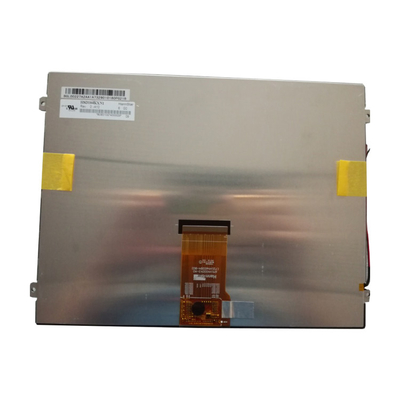

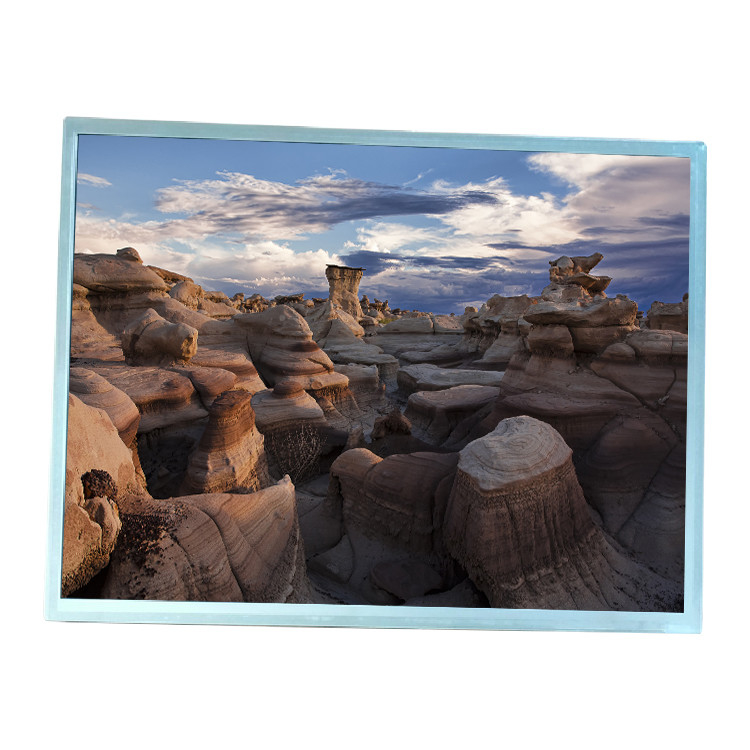

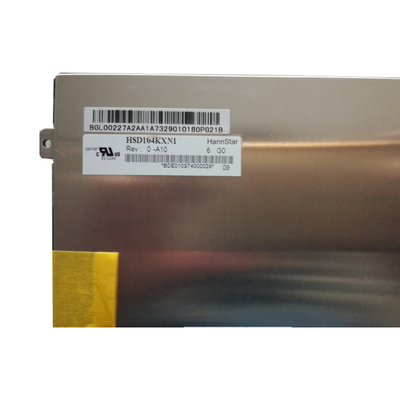

HannStar 10.4 inch HSD104KXN1-A10 1024*768 LCD Screen Panel for Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD104KXN1-A10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD104KXN1-A10 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 123PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 213.2(W)×160.4(H) Mm | Outline Dim.: | 236(H)×174.3(V) ×7(D) Mm |
| Weight: | 316g | Designed For: | Automotive Display |
Product Description
HannStar 10.4 inch HSD104KXN1-A10 1024*768 LCD Screen Panel for Automotive Display
HSD104KXN1-A10 Product details :
| HannStar LCD Screen HSD104KXN1-A10 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD104KXN1-A10 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 213.2(W)×160.4(H) mm |
| Outline Size | 236(W)×174.3(H) ×7(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.2M |
| Lamp Type | 4S8P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Weight | 316g |
| Application | Automotive Display |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 60 pins Connector |
| Input Voltage | 3.3/12.1/25/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| HannStar 10.4 inch HSD104KXN1-A10 1024*768 LCD Screen Panel for Automotive Display | |
HSD104KXN1-A10 Description:
1.Exactly the same items and pictures.
2.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
3.Each item has been checked and in good condition before shipping.
4. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
HSD104KXN1-A10 Shipping and Package :
HSD104KXN1-A10 Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
HSD104KXN1-A10 Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
HSD104KXN1-A10 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: How to order HannStar Display LCD HSD104KXN1-A10 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the HSD104KXN1-A10 before shipping ?
A: Of course , our lcd panel HSD104KXN1-A10 was Strictly tested before shipping.
Q: What happen if the lcd pane HSD104KXN1-A10 received can't work ?
A: HannStar Display HSD104KXN1-A10 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
