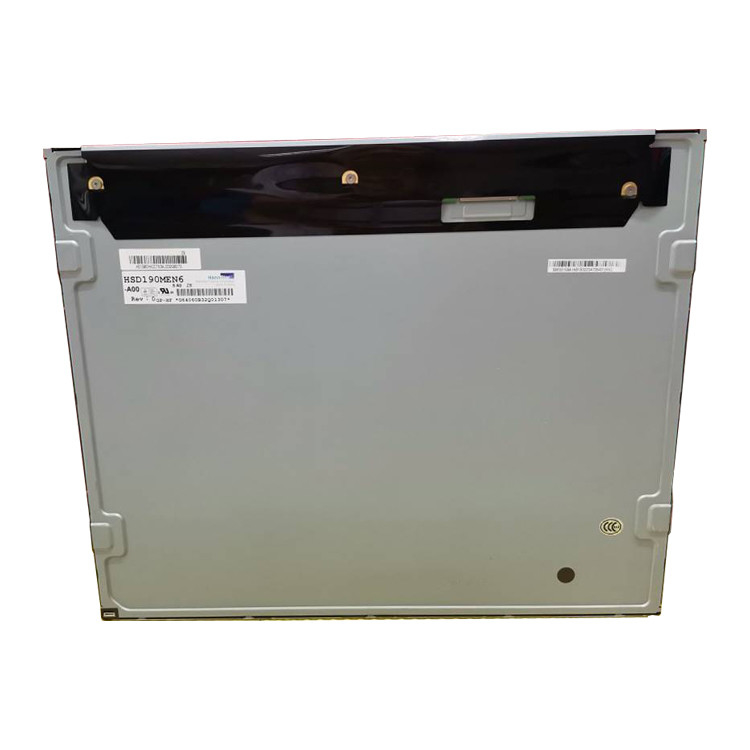

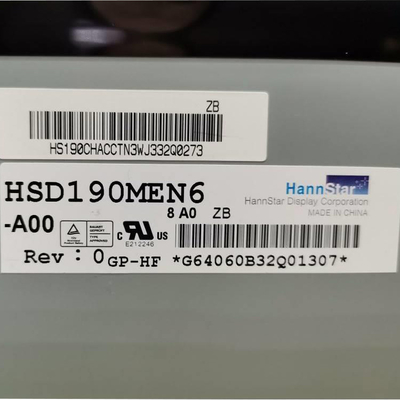

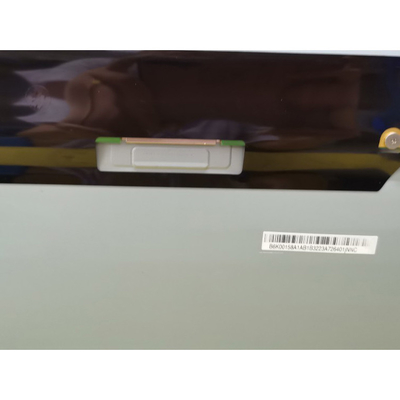

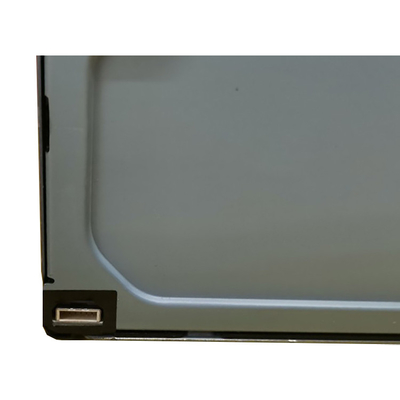

New Original HSD190MEN6-A00 19.0 Inch 1280(RGB)*1024 Resolution 30 Pins LCD Display for Laptop Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190MEN6-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD190MEN6-A00 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.3(W)×305.0(H) Mm | Outline(mm): | 396 × 324 × 10.4 (H×V×D) |
| Mass: | 1.60±0.20Kgs | Used For: | Desktop Monitor / Industrial |
Product Description
New Original HSD190MEN6-A00 19.0 Inch 1280(RGB)*1024 Resolution 30 Pins LCD Display for Laptop Industrial
HSD190MEN6-A00 Product details :
| HannStar LCD Screen HSD190MEN6-A00 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD190MEN6-A00 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.3(W)×305.0(H) mm |
| Outline Dim. | 396(W)×324(H)×10.4(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 76% NTSC |
| Light Source | WLED [13S4P] , 30K hours , W/O Driver |
| Weight | 1.60±0.20Kgs |
| Designed For | Desktop Monitor / Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| New Original HSD190MEN6-A00 19.0 Inch 1280(RGB)*1024 Resolution 30 Pins LCD Display for Laptop Industrial | |
HSD190MEN6-A00 Special Notice:
Please test normal before installation.
If the product is damaged due to logistics. Please save the outer packaging and contact us. Provide photos of damaged items and external packaging.
As the touch screen may has different connector cable for the same model.
Please open your screen to check if your cable is the same as the picture.
Different production batches. Product part number and LOGO may not be consistent with the picture. We only guarantee compatibility
HSD190MEN6-A00 Shipping and Package :
HSD190MEN6-A00 Packaging:
We usually pack our products by anti-static bags, bubble bags, good quality cartons. And we promise here if you get it bad because of poor package, it will be 100% our responsibility, and we will take care of that. And as it proved for our reponsibility, you will get 100% your money back, or free replacement.
HSD190MEN6-A00 Shipping:
1. We will test them strictly before shipment.
2. We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3. We will send the product within7 working days after receiving the order.(Chinese New Year, we will extend the delivery of products)
4.Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition or replace it.
5.Please confirm it with us before buying if you need 100% new.
HSD190MEN6-A00 Quality and warranty:
First of all, we have obtained all the relevant popular test equipment to test and ensure their good quality, because we know that if you get bad, this will be our problem.
We provide warranty for all parts we sell. As long as you are not damaged or damaged, we will provide free exchange.
HSD190MEN6-A00 FAQ:
Q: Do you accept sample orders for HSD190MEN6-A00 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of HSD190MEN6-A00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my goods HSD190MEN6-A00 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods HSD190MEN6-A00 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
