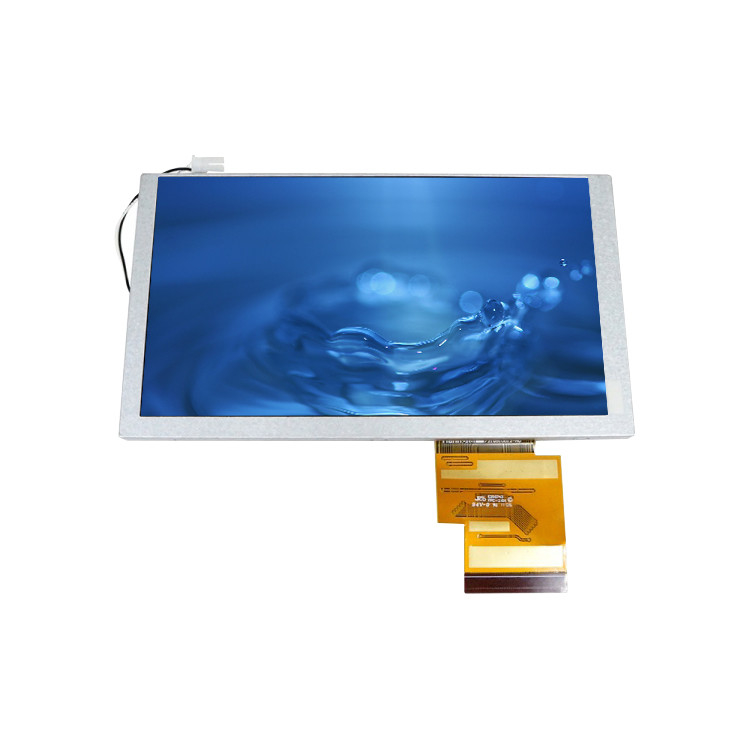

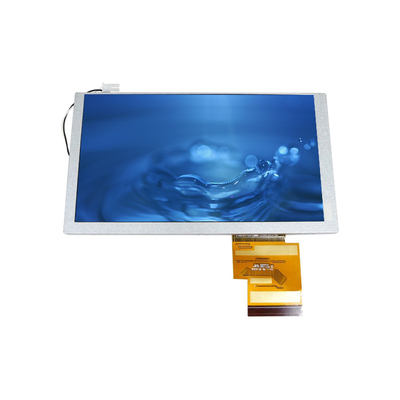

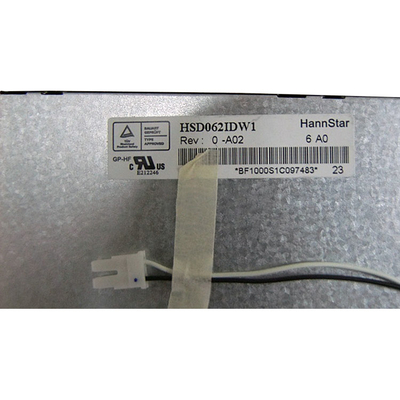

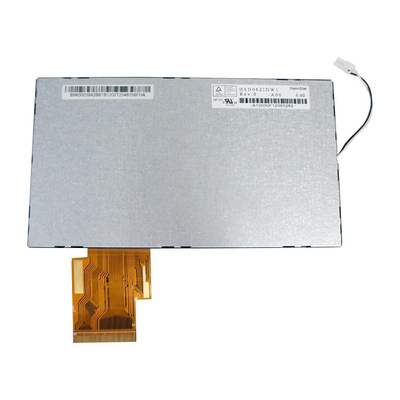

New HannStar 6.2 inch 800*480 HSD062IDW1-A02 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD062IDW1-A02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD062IDW1-A02 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 150PPI | Active Area: | 137.52(W)×77.232(H) Mm |
| Bezel Opening: | 140.7(W)×80.4(H) Mm | Outline Dim.: | 155.2(H)×88.2(V) Mm |
| Weight: | 120g (Typ.) | Designed For: | Automotive Display |
Product Description
New HannStar 6.2 inch 800*480 HSD062IDW1-A02 LCD Display Screen
HSD062IDW1-A02 Product details :
| HannStar LCD Screen HSD062IDW1-A02 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD062IDW1-A02 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 150PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 137.52(W)×77.232(H) mm |
| Bezel Opening | 140.7(W)×80.4(H) mm |
| Outline Dim. | 155.2(W)×88.2(H) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/70/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M 50% NTSC |
| Light Source | WLED [3S7P] , 20K hours , W/O Driver |
| Weight | 120g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/10.0/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| New HannStar 6.2 inch 800*480 HSD062IDW1-A02 LCD Display Screen | |
HSD062IDW1-A02 Terms of Service:
Thank you for reviewing the important information, I will tell you the important steps:
The screen of the machine is inside the device, you need to disassemble the machine, and then send me the screen picture (this is very important, please pay attention),And tell me the length, width, and thickness of the screen.
Could you please tell me if the display screen is not good, or the touch handwriting is not good, I will confirm the screen information.
HSD062IDW1-A02 Shipping and Package :
HSD062IDW1-A02 Shipping information:
We will deliver the goods within 1-5 working days after payment settlement.
We provide some goods delivered by Hongkong / China Post free of charge. If you need it urgently, please contact me.
The standard mode of transportation is international air mail. The project will take 7-14 hours to ship from Hong Kong
Reception days in most areas (2-3 weeks).
If you do not receive the item within 30 working days (5 weeks), please contact us to investigate the case( Brazil). Italy. 5-8 weeks)
HSD062IDW1-A02 Delivery time:
We will receive orders in the 2 days after,so sending the parcelto you,Shippingtime depends on the efficiency of your local post office and customs. Generalcountry will be 15-20 days will arrive,If you are in urgent need of a package,please choose DHL or EMS,usually in 7-10 days to reach.
HSD062IDW1-A02 Warranty service:
1. All products are guaranteed for 120 days.
2. Defective or damaged products must be returned within 20 days after delivery.
3. Please wait patiently and give us 3 working days to deal with your return after we receive your returned package.
4. All returned freight shall be borne by the buyer.
HSD062IDW1-A02 FAQ:
Q: If I place order now,when will you ship the goods of HSD062IDW1-A02 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of HSD062IDW1-A02 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods HSD062IDW1-A02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
