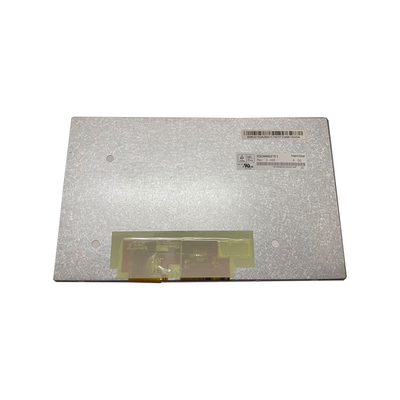

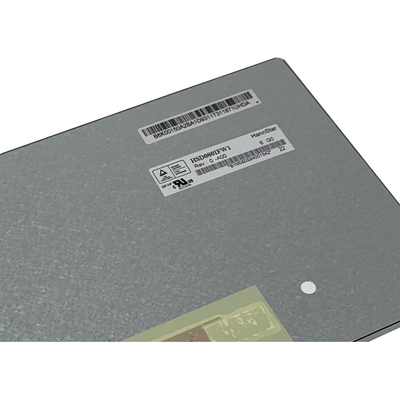

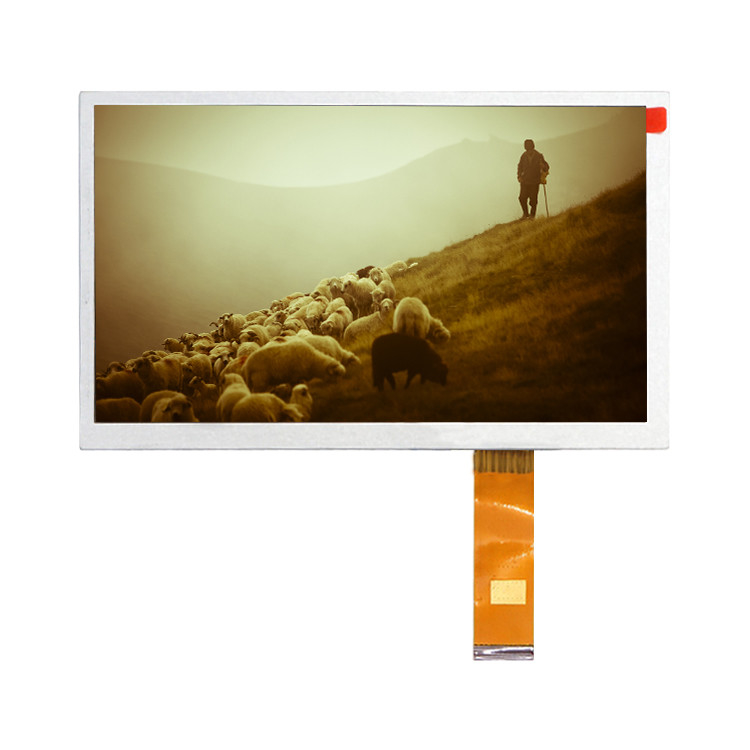

Hannstar HSD080IFW1-A00 1024*600 8.0 inch IPS TFT LCD module screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD080IFW1-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD080IFW1-A00 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 148PPI | Active Area: | 176.64(W)×99.36(H) Mm |
| Bezel Opening: | 180.1(W)×103.4(H) Mm | Outline Dim.: | 192.8(H)×116.9(V) ×4.7(D) Mm |
| Weight: | 181g (Typ.) | Designed For: | Automotive Display |
Product Description
Hannstar HSD080IFW1-A00 1024*600 8.0 inch IPS TFT LCD module screen Display
HSD080IFW1-A00 Product details :
| HannStar LCD Screen HSD080IFW1-A00 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD080IFW1-A00 |
| Diagonal Size | 8.0 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 148PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | 180.1(W)×103.4(H) mm |
| Outline Dim. | 192.8(H)×116.9(V) ×4.7(D) mm |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/75 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 50% NTSC |
| Light Source | WLED [3S13P] , 12K hours , W/O Driver |
| Weight | 181g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Power Supply | 3.3/11.0/18.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Hannstar HSD080IFW1-A00 1024*600 8.0 inch IPS TFT LCD module screen Display | |
HSD080IFW1-A00 Warning:
*Installation guide not included, We are not responsible for any damage caused by installation of this accessory, please be sure you know how to install it before bid,Thank you for your kind understanding!
*We just can guarantee the one you received that will be compatible with your machine,
*Please DO NOT buy if you do not accept an A+ grade compatible touch screen digitizer with different flex cable numbers as our title/description/photo states is out of supply in the market, thank you!
1. Each screen is tested before shipping & 100% working;Repair/Replacing old, broken, cracked,damaged faulty touch screen.
2. After receiving the goods, do not tear the film, do not stick the glue on the back, test the machine first, remove the old screen, insert the new screen, and check whether the sensitivity is normal. Please be sure to try the machine first. Make sure the quality is ok. Install again.it is easy to burn the motherboard and touch screen, we are not responsible.
3.before connection test the power must be disconnected ,Otherwise it will burn the motherboard and touch screen easily.If it doesn't work, we won't be responsible.
HSD080IFW1-A00 Shipping and Package :
HSD080IFW1-A00 Delivery time:
We will receive orders in the 2 days after,so sending the parceIto you,Shipping time depends on the efficiency of your local post office and customs. General country will be 15-20 days will arrive,If you are in urgent need of a package,please choose DHL or EMS,usually in 7-10 days to reach.
HSD080IFW1-A00 Warranty & Maintenance:
We offer the 1month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12monthfree maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
HSD080IFW1-A00 FAQ:
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of HSD080IFW1-A00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of HSD080IFW1-A00 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of HSD080IFW1-A00 ?
A: Of course!If you make a large order, we will give you a discount.
