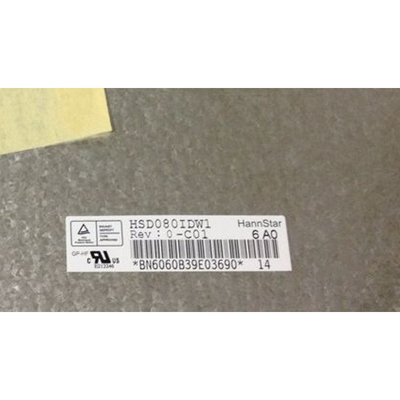

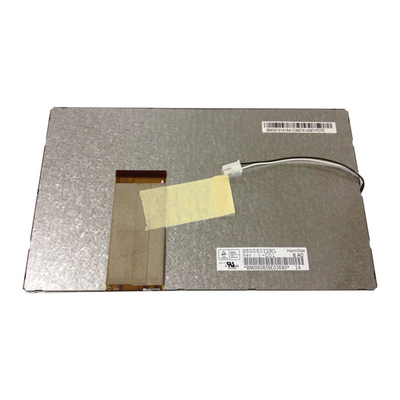

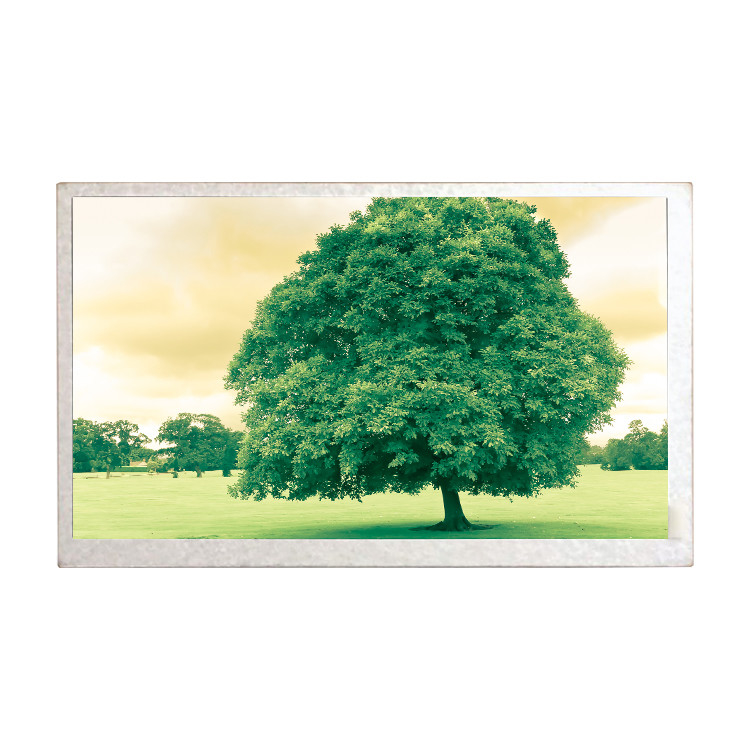

New Original Car GPS Navigation 8.0 inch TFT Hannstar HSD080IDW1-C01 LCD Display Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD080IDW1-C01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD080IDW1-C01 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)*480, WVGA 116PPI | Active Area: | 176.64(W)*99.36(H) Mm |
| Bezel Opening: | 180.1(W)*103.4(H) Mm | Outline Dim.: | 193.1(W)*117.2(H)*6.92(D) Mm |
| Weight: | 215g (Typ.) | Designed For: | Automotive Display |
Product Description
New Original Car GPS Navigation 8.0 inch TFT Hannstar HSD080IDW1-C01 LCD Display Screen Panel
HSD080IDW1-C01 Product details :
| HannStar LCD Screen HSD080IDW1-C01 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD080IDW1-C01 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | 180.1(W)×103.4(H) mm |
| Outline Dim. | 193.1(H)×117.2(V)×6.92(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Min.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M 50% NTSC |
| Light Source | WLED [3S10P] , 20K hours , W/O Driver |
| Weight | 215g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/9.7/15.0/-9V (VCC/AVDD/VGH/VHL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| New Original Car GPS Navigation 8.0 inch TFT Hannstar HSD080IDW1-C01 LCD Display Screen Panel | |
HSD080IDW1-C01 Becareful:
To avoid wrong orders or wrong items you buy, here are some things you need to read before ordering.
1. Now tell us your LCD model name, such as HSD080IDW1-C01
2. Please check the LCD screen size and resolution.
3. Please check the signal interface (14 pin, 20 pin, 30 pin (s, m, l), 40 pin (s, m, l), 50 pin) and position.
4.If you have any questions, please contact me and we will reply within 24 hours.
If you buy more quantity, please contact us. Buy more parts. We'll offer you a discount using add to cart.
HSD080IDW1-C01 Shipping and Package :
HSD080IDW1-C01 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
HSD080IDW1-C01 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
HSD080IDW1-C01 Service hours:
lf you have any question, please contact us I will sincerely for your service,ourservice time for the Beijing time:8: 00-12:00; 1:30-6: 00;But we have 24 hourswill have customer service for you to solve the problem.
HSD080IDW1-C01 FAQ:
Q: How to make payment for HSD080IDW1-C01 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of lcd panel HSD080IDW1-C01 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: Do you accept sample orders for HSD080IDW1-C01 ?
A: Of course!sample order is welcome !
Q: What happen if the HSD080IDW1-C01 I receive can't work ?
A: The HannStar HSD080IDW1-C01 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
