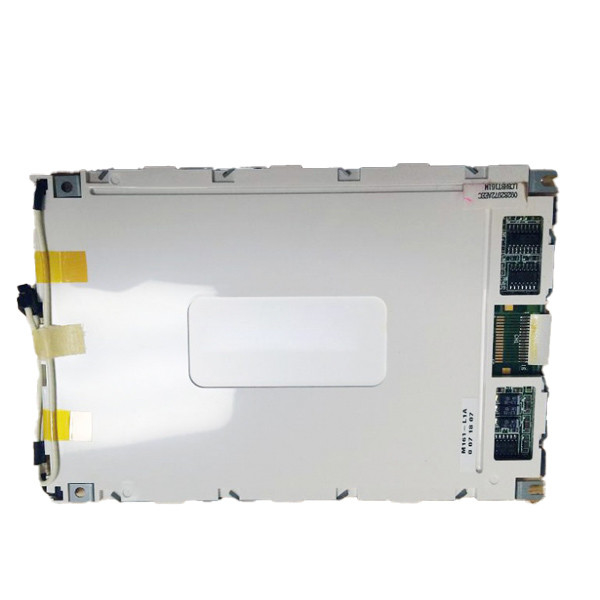

5.7 Inch 320*240 LCD Screen Module LCBHBT161M CSTN LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NAN YA |
| Model Number: | LCBHBT161M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LCBHBT161M | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 120.0(W)×90.0(H) Mm | Outline Dim.: | 168(W)×111(H) Mm |
| Weight: | 280g | Designed For: | Industrial |
| High Light: | 5.7 Inch LCD Screen Module,LCD Screen Module LCBHBT161M,CSTN LCD Display Panel |
||
Product Description
5.7 inch 320*240 lcd screen module LCBHBT161M CSTN-LCD Display Panel
LCBHBT161M Product details :
| NAN YA LCD Screen LCBHBT161M | |
|---|---|
| Panel Brand | NAN YA |
| Panel Model | LCBHBT161M |
| Panel Size | 5.7 inches |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 320(RGB)×240 QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2(horizontal)×86.4(vertical) mm |
| Bezel Opening | 120.0(horizontal)×90.0(vertical) mm |
| Outline Size | 168(horizontal)×111(vertical) mm |
| Brightness | 75 cd/m² (Typ.) |
| Contrast Ratio | 30:1 (Typ.) (Transmission) |
| Display Mode | STN, Normally Black, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 240/100 (Typ.)(Tr/Td) ms |
| Display Colors | Color, 36% NTSC |
| Lamp Type | CCFL [1 pcs] , 20K hours, no driver |
| Frequency | 120Hz |
| Touch Screen | Without |
| Panel Weight | 280g |
| Application | Industrial |
| Signal Interface | 16 pins Parallel Data (8-bit) , FPC |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating: 0 ~ 50 °C ; Storage: -20 ~ 60 °C |
| 5.7 inch 320*240 lcd screen module LCBHBT161M CSTN-LCD Display Panel | |
