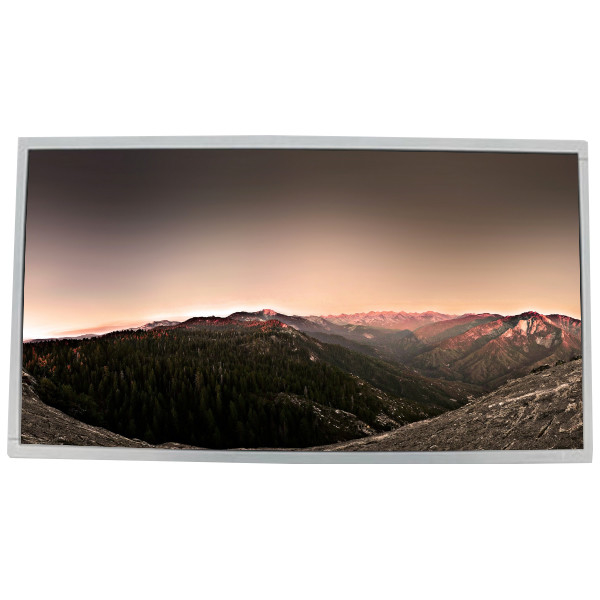

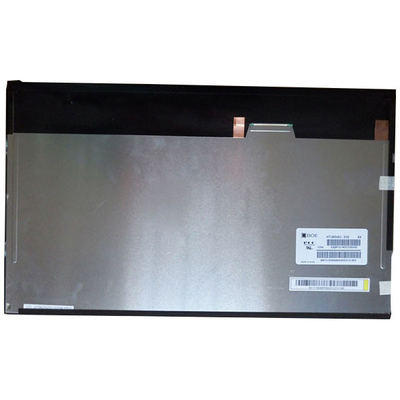

18.5 Inch 1366*768 IPS Display TFT LCD Panel HT185WX1-300 For Computer Monitors
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | HT185WX1-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HT185WX1-300 | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 84PPI | Active Area: | 409.8(W)×230.4(H) Mm |
| Bezel Opening: | 413.4(W)×234.0(H) Mm | Outline Dim.: | 430.4(W)×254.6(H)×11.4(D) Mm |
| Weight: | 1.33Kgs (Typ.) | Designed For: | Desktop Monitor |
| High Light: | 18.5 Inch TFT LCD Panel,Computer IPS TFT LCD Panel,HT185WX1-300 |
||
Product Description
HT185WX1-300 18.5 inch 1366*768 display IPS tft lcd panel for computer monitors
HT185WX1-300 Product details :
| BOE LCD SCREEN HT185WX1-300 | |
|---|---|
| manufacturer | BOE |
| Model Name | HT185WX1-300 |
| screen size | 18.5 inch |
| Screen type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768 [WXGA] 84PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 409.8(H)×230.4(V) mm |
| physical dimension | 430.4(H)×254.6(V) ×11.4(D) mm |
| Visual size | 413.4(H)×234.0(V) mm |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥20) |
| Responding time | 1.5/3.5 (Typ.)(Tr/Td) |
| Number of color | 16.7M 72% NTSC |
| Backlight type | WLED [10S4P] , 30K hours , W/O Driver |
| Weight | 1.33Kgs (Typ.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| HT185WX1-300 18.5 inch 1366*768 display IPS tft lcd panel for computer monitors | |
HT185WX1-300 Payment:
1.we provide one year warrantly, except for the used products.
2. About the payment terms,we can accept Bank Transfer,Paypal, Western Union, NoneyGram,Alipay and Ecrow terms.
3.Prices quoted are correct at time of this quotation but may be subject to change after one week due to currency fluctuations and change to quantity ordered.
HT185WX1-300 Shipping and Package :
HT185WX1-300 Shipping :
1, Shipping via Alibaba Standard Shipping.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 10-20 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
HT185WX1-300 Delivery time:
We will receive orders in the 2 days after,so sending the parcelto you,Shipping time depends on the efficiency of your local post office and customs. General country will be 15-20 days will arrive,If you are in urgent need of a package,please choose DHL or EMS,usually in 7-10 days to reach.
HT185WX1-300 Warranty :
1, We take 6 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
HT185WX1-300 FAQ:
Q: Can you give me a discount if I need a large quantity of HT185WX1-300 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HT185WX1-300 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of HT185WX1-300 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
