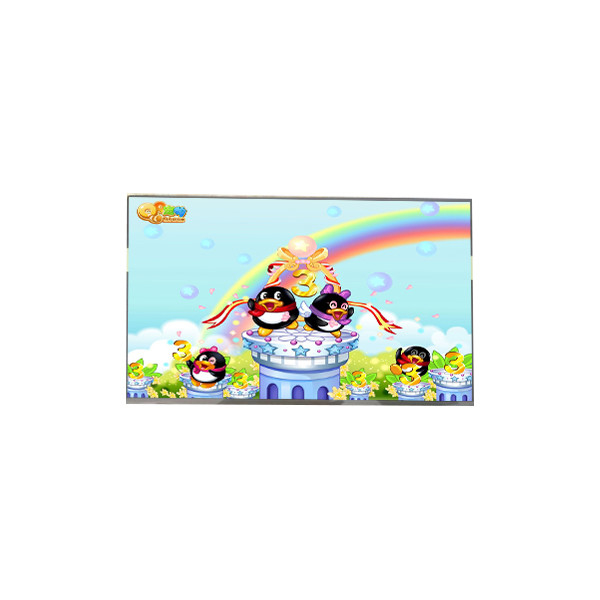

13.3 inch LCD Screen LP133WH2-TLM1 1366*768 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LP133WH2-TLM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LP133WH2-TLM1 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 118PPI | Active Area: | 293.42(W)×164.97(H) Mm |
| Contrast Ratio: | 350:1 (Typ.) (TM) | Response Time: | 16 (Typ.)(Tr+Td) |
| Support Color: | 262K 45%NTSC | Designed For: | Laptop |
| Highlight: | AUO LCD Screen A201SN02 V4,No Touch AUO LCD Screen |
||
Product Description
13.3 inch LCD Screen LP133WH2-TLM1 1366*768 LCD Display
LP133WH2-TLM1 Product details :
| Brand | LG Display |
| Model P/N | LP133WH2-TLM1 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.42(W)×164.97(H) mm |
| Bezel Opening | 297.42(W)×168.57(H) mm |
| Outline Size | 317.2(W)×188.7(H)×3.6(D) mm |
| Brightness | 200 cd/m² (Typ.) |
| Viewing Angle | 40/40/10/30 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 45%NTSC |
| Frequency | 60Hz |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Surface | Antiglare, Hard coating (2H) |
| Contrast Ratio | 350:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16 (Typ.)(Tr+Td) |
| Lamp Type | 9S4P WLED , 12K hours , With LED Driver |
| Touch Screen | Without |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
LP133WH2-TLM1 Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
LP133WH2-TLM1 Payment and Tax:
1.Alipay is perferred and safety.
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
3.The order will be cancelled beyond 7 business days on unpaid station.
LP133WH2-TLM1 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
LP133WH2-TLM1 Return:
1.Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
2.Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LP133WH2-TLM1 FAQ:
Q: How to order lcd panel LP133WH2-TLM1 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will my order lcd panel LP133WH2-TLM1 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test lcd panel LP133WH2-TLM1 before shipping?
A: Don't Worry , Our LP133WH2-TLM1 was tested ok before shipping
Q: What happen if LP133WH2-TLM1 I received can't work ?
A: Our lcd LP133WH2-TLM1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
LP133WH2-TLM1 Shipping and Package :
