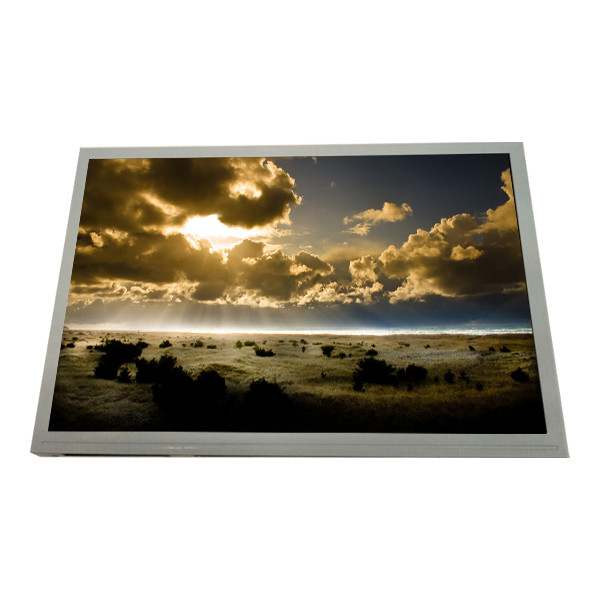

Kyocera 20 Pins LVDS LCD Display Modules 12.1 Inch RGB 1280×800 TCG121WXLPAPNN-AN20-S
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG121WXLPAPNN-AN20-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG121WXLPAPNN-AN20-S | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Bezel Opening: | 264.1(W)×166.2(H) Mm | Outline(mm): | 277.7 × 182.5 (H×V×D) |
| Mass: | 680g (Typ.) | Used For: | Industrial |
| Highlight: | 12.1Inch LCD Display Modules,LVDS LCD Display Modules,TCG121WXLPAPNN-AN20-S |
||
Product Description
Kyocera 20 pins LVDS 12.1 inch 1280(RGB)×800 TCG121WXLPAPNN-AN20-S lcd display modules
TCG121WXLPAPNN-AN20-S Product details :
| Kyocera LCD SCREEN TCG121WXLPAPNN-AN20-S | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG121WXLPAPNN-AN20-S |
| Panel Size | 12.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800, WXGA, 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.1(W)×166.2(H) mm |
| Outline Size | 277.7(W)×182.5(H) mm |
| Surface | matte |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 750:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Display Colors | 16.2M , 50% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 680g (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -20 ~ 70 °C ; Storage: -30 ~ 80 °C |
| Kyocera 20 pins LVDS 12.1 inch 1280(RGB)×800 TCG121WXLPAPNN-AN20-S lcd display modules | |
TCG121WXLPAPNN-AN20-S Product quality assurance:
Our product is original new , before sending the goods are tested by the engineers , ALL is OK,then they will be sended to the buyer,so you can rest assured to buy in my store.
TCG121WXLPAPNN-AN20-S Shipping and Package :
TCG121WXLPAPNN-AN20-S Shipment:
1, Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
5,LCD will be sent by EMS/DHL/UPS/ according to the place or customer choice.
EMS:15-30 business days
DHL/UPS 7-15 business days
AIR MAILS LIKE HK POST, CHINA POST, SWEDEN POST 30-45 business days
TCG121WXLPAPNN-AN20-S package and shipping time:
we have professional team packages that will package your package more strongly and let it get to you s afely, so you do not have to worry about it.
1. epacket: It usually takes 10-20 working days to receive the parcel.
2. EMS: It usually takes 7-10 business days to receive the parcel.
3. DHL: It usually takes 5-7 business days to recei ve the parcel.
4. China post: It usually takes 15-40 days, Brazil can take several days to receive the parcel.
TCG121WXLPAPNN-AN20-S Returns :
*All returns must be notified before the return. We look forward to cooperating with rational and friendly customers. If you have any problems with the items you received, please contact us immediately.
*Because the buyer ordered the wrong parts, the buyer needs to pay the replacement shipping cost.
*The returned goods must have all original packaging and be in good condition.
*All items will be tested before shipment. If you encounter any problems, please contact me first and I will try my best to solve it for you.
TCG121WXLPAPNN-AN20-S FAQ:
Q: Can You declare my order of TCG121WXLPAPNN-AN20-S to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of TCG121WXLPAPNN-AN20-S ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of TCG121WXLPAPNN-AN20-S ?
A: Of course!sample order is welcome !
